Infrared LED array M

stripcustomfor dryers

Overview

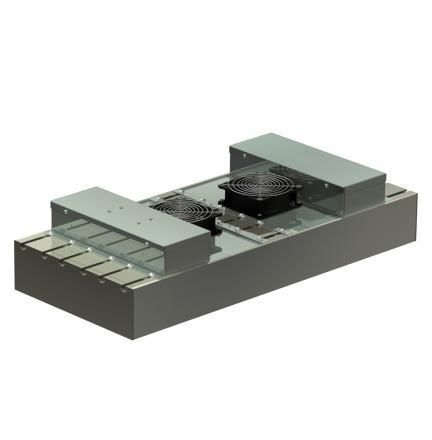

The M-Series infrared modules integrate up to nine emitters depending on housing width and emitter type or shape. Modules can be combined to cover larger heating fields. The units feature an aluminum housing, are quick to install and can be customized in length to match application requirements. They provide a long service life and can be retrofitted into existing lines for a cost-effective upgrade.

Design & Integration
Standardized components enable fast configuration and expedited delivery. Mounting is performed via T-slots on the upper side of the profile. The top profile accommodates pyrometer installation to monitor process temperature and increase system flexibility.

Applications

• Plastics processing
• Textile processing
• Paper processing
• Coil coating
• Drying, heating, coating, stamping, laminating, gluing and forming
• Many other industrial applications

Features / Technical specifications

• Integrates up to nine emitters depending on housing width and emitter type/shape
• Multiple modules can be combined for larger heating fields
• Aluminum housing
• Quick and straightforward to install
• Customized to required length to meet application needs
• Standard widths: 110, 220 and 330 mm
• Configurable in length up to 2800 mm
• Mounting via T-slots on upper side profile
• Top profile allows attachment of pyrometers
• Height of housing: 100 mm
• Height with terminal box: 160 mm
• Universally applicable across industrial processes
• Long service life and suitable for retrofitting into existing systems
