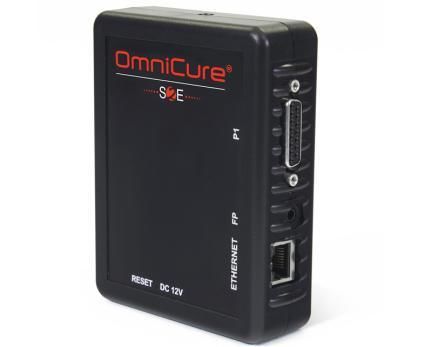

RJ45 network module OmniCure® S2E

EthernetTCP/IPModbus TCP

Product Overview
The OmniCure S2E Network Module is an Ethernet adapter for OmniCure S-Series spot UV curing systems. It provides centralized remote monitoring and control of UV curing equipment to streamline maintenance and production oversight. The S2E enables connection of up to 300 units on a local area network and interfaces with OmniCure Monitoring Station software for continuous data collection and equipment management.

Key Benefits

• Reduce maintenance time and maintain production continuity through centralized monitoring
• Trend and predict maintenance needs using continuous operational data logging
• Increase process visibility and quickly isolate issues that cause waste or rework
• Receive real-time email alerts to minimize downtime and speed fault identification

Remote Ethernet Functions

• HTTP remote web interface for system programming via the S2E control panel GUI
• Automatic TCP/IP device discovery through OmniCure Monitoring Station software
• XML transfer protocol for secure data logging and electronic records
• SMTP for email notifications (up to 7 unique recipients per unit)
• Optional PLC control via Modbus TCP for factory integrations

Compatibility
Compatible with OmniCure S2000 and S1500 systems (S2E adds StepCure® process functionality to the S1500).

Documentation
Available documents: Brochure - OmniCure S2E Network Module; Warranty Details - OmniCure UV Curing Products.

Technical specifications

• Compatible OmniCure Systems: S2000 and S1500 (S2E adds StepCure® to S1500)
• Power Supply (included): DC input 12 VDC 0.5 A MAX
• Ethernet Interface: 10/100 Mbps (auto-sensing) RJ45 connector
• Remote Functions: HTTP web interface; Automatic TCP/IP device-find; XML data transfer; SMTP email notifications (up to 7 recipients); Optional Modbus TCP
• Ambient Operating Temperature: 15°C to 35°C (59°F to 95°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Humidity Range: Up to 85% MAX (non-condensing)
• Operating Voltage: 100-240 VAC (±10%) 50/60 Hz 0.06/0.025 A
• Dimensions (L x W x H): 32 x 89 x 114 mm (1 1/4" x 3 1/2" x 4 1/2")
• Weight: 181 g (0.4 lb)
• Warranty: 1 year
