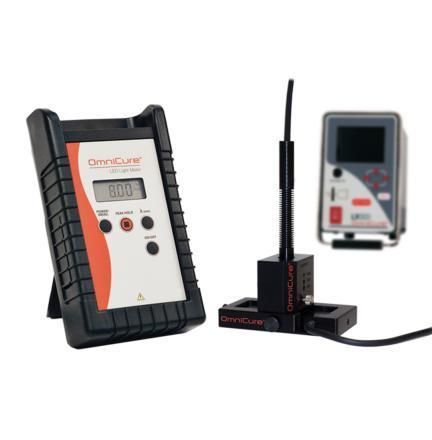

UV radiometer OmniCure LS200

Product Overview
The OmniCure LS200 UV LED radiometry and calibration system provides precise on-site measurement and calibration of UV LED power or irradiance, enabling manufacturers to control light output for reliable, repeatable curing processes. The LS200 integrates with the LX500 UV LED Spot Curing System for calibration and supports optional accessories. It offers a wide measurement range, high precision, and sensor optimization for near-monochromatic LED sources.

Accurate Measurement and Calibration
The LS200 delivers accuracy of +/- 10% with a resolution of 1 mW/cm2 for irradiance and 1 mW for power. A precision-calibrated fine aperture ensures consistent measurements across a broad dynamic range. Sensors are factory calibrated to standards traceable to the NRC for reliable, auditable results.

Versatile Measurement Range
Choose irradiance measurement (W/cm2) with the LS200 or optical power measurement (W) with the LS200P. The system covers power from 1 mW to 2000 mW and irradiance from 50 mW/cm2 to 40 W/cm2. Wavelength selection is programmable from 320–750 nm to suit diverse applications.

Compact Design
The LS200 sensor is compact for direct measurements at the cure site, including confined areas. The sensor can be linked to the LM2011 light meter or the LX500 controller for real-time display of optical measurements.

Automation Capability
The LM2011 light meter includes a USB interface enabling communication between the LS200 sensor and a PC via GUI or command-line commands to facilitate integration into automated production workflows.

Optimized for UV LED Curing Systems
The LS200 is calibrated with a near-monochromatic source to minimize errors caused by narrow LED spectral distributions. When used with the OmniCure Beam Positioning Kit and the LX500 controller, the LS200 enables precise alignment and repeatable output measurements of OmniCure UV LED heads.

Additional Accessories

• OmniCure calibration kits including light sensors
• LM2011 Light Meter display for spot checks
• Beam Positioning Kit for accurate LED head alignment

Technical specifications

• Spectral sensitivity: Selectable wavelengths programmable from 320–750 nm
• Measurement range: Irradiance 50 mW/cm2 to 40 W/cm2; Power 1 mW to 2000 mW (LS200P for power)
• Accuracy: +/- 10%
• Resolution: Irradiance 1 mW/cm2; Power 1 mW
• Calibration cycle: One year
• Battery life: Two years typical (intermittent use)
• Operating temperature range: Ambient to 40° C
• Certification: Complies with IEC, Canadian and US standards. RoHS compliant.
• Functions: Peak Hold, Power On/Off, Wavelength selection, Power/Irradiance
• Calibration: NRC traceable
• LS200 sensor dimensions (L×W×H): 75 mm x 25 mm x 11.95 mm
• LM2011 light meter dimensions (L×W×H): 165 mm x 100 mm x 44 mm
