Lamp bulb IPL

tubular

Overview

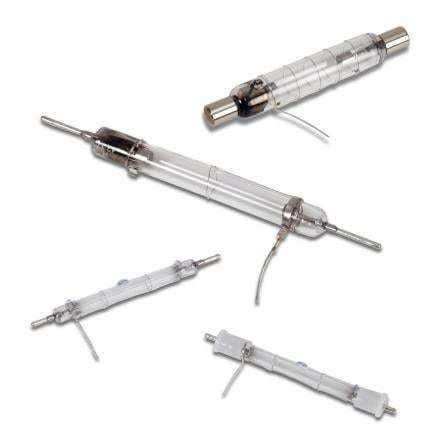

Excelitas IPL cosmetic flashlamps are engineered for Intense Pulsed Light (IPL) systems used in hair removal and clinical skin treatments. The family includes linear quartz lamps, with liquid-cooled (LC) variants for higher-power applications. Lamps support common operating modes such as burst firing and normal free capacitor discharge. A range of trigger transformers and accessory parts (end caps, trigger wires, sockets) is available to integrate lamps into clinical devices. Application engineering support is offered for selection and custom development.

Typical applications

• Hair removal
• Skin rejuvenation
• Acne treatment
• Tattoo removal
• Treatment of vascular and pigmented lesions

Models and specifications

• QXF1388 — Linear, LC; Arc length: 20 mm; Inner/Outer diameter: 5/7 mm; Pulse energy: 450 (tt) J; Life: 10 to 100k flashes; Anode voltage: 200–350 V; Trigger transformer: ZS 1324
• QXF17 — Linear, LC; Arc length: 50 mm; Inner/Outer diameter: 2/3 mm; Pulse energy: 900 (tt) J; Life: 11 to 100k flashes; Anode voltage: 300 V; Trigger transformer: ZS 1324
• QXF20 — Linear, LC; Arc length: 48 mm; Inner/Outer diameter: 5/7 mm; Pulse energy: 1700 (tt) J; Life: 12 to 100k flashes; Anode voltage: 250–350 V; Trigger transformer: ZS 1324
• QXA542 — Linear; Arc length: 20 mm; Inner/Outer diameter: 5/7 mm; Pulse energy: 40 (tt) J; Life: 13 to 100k flashes; Anode voltage: 300–450 V; Trigger transformer: ZS1052
• BGQ 7230 — Linear; Arc length: 30 mm; Inner/Outer diameter: 2/4 mm; Pulse energy: 100 J; Life: 100k flashes; Anode voltage: 230–400*** V; Trigger transformer: ZS1052
• BGGP 7440 — Linear; Arc length: 40 mm; Inner/Outer diameter: 3/5 mm; Pulse energy: 60 J; Life: 50k flashes; Anode voltage: 300–400*** V; Trigger transformer: ZS1052
• BGGP 6330 — Linear; Arc length: 30 mm; Inner/Outer diameter: 2/4 mm; Pulse energy: 50 J; Life: 10k flashes; Anode voltage: 300–350*** V; Trigger transformer: ZS1052
• BGQ 9925 — Linear; Arc length: 25 mm; Inner/Outer diameter: 6/8 mm; Pulse energy: 550 J; Life: 2k flashes; Anode voltage: 250–350*** V; Trigger transformer: ZS1052

Notes
LC = Liquid Cooled. Increasing pulse energy typically reduces lamp lifetime. Lifetime depends strongly on operating conditions (pulse energy, electrical circuitry, cooling). Entries marked '***' require a triggering support voltage.

Technical characteristics

• Product family: IPL Cosmetic Flashlamps
• Brand: Excelitas
• Envelope material: quartz (suitable for low to high power)
• Shapes: linear (most widely used); liquid-cooled variants available
• Common operating modes: burst modes; normal free capacitor discharge
• Pulse energies: from tens to thousands of Joules depending on model (see models list)
• Typical anode voltages: approximately 200 V to 450 V depending on model
• Estimated life: from 2k to 100k flashes depending on model and operating conditions
• Available trigger transformers: ZS 1324, ZS1052 (model dependent)
• Available add-ons: end caps, trigger wires, sockets and trigger transformers
• Applications: hair removal, skin rejuvenation, acne treatment, tattoo removal, treatment of vascular and pigmented lesions
