Xenon bulb PE1000D-13F

high-power24VDC

Product Description

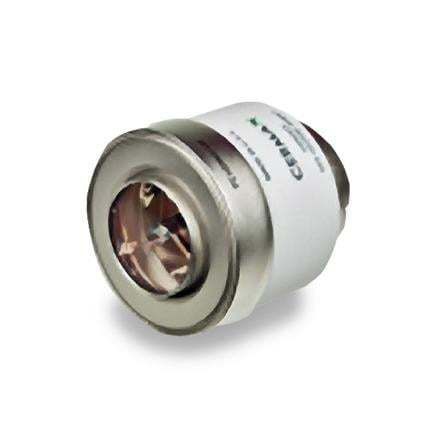

The PE1000D-13F is a 1000 W Cermax® xenon lamp with an elliptical reflector and ceramic body, engineered for high-intensity, short-focal-distance illumination. It delivers focused broad-spectrum light suitable for wafer inspection, machine vision, solar simulation and spotlight/beacon use.

Key Details
High-intensity visible output: 23,500 Lumens. Nominal power 1000 W (operating range 800–1050 W). Color temperature: 5900 K. Typical lamp life: 1000 hours.

Specifications
Reflector type: Elliptical, f/1.3. Body type: Ceramic. Nominal current: 50 A (DC). Current range: 45–56 A (DC). Ignition voltage: 28 kV (recommended minimum, system dependent). Operating voltage: 20 V (DC) (range 15–24 V). Maximum temperature: 150° C. Radiant output: 245 W. UV output (<390 nm): 13 W. IR output (>770 nm): 135 W.

Applications
Wafer inspection; Machine vision; Solar simulation; Spotlights; Beacons.

Technical specifications

• Model: PE1000D-13F
• Brand: Cermax®
• Reflector: Elliptical, f/1.3
• Body type: Ceramic
• Visible output: 23500 Lumens
• Nominal power: 1000 W (range 800-1050 W)
• Nominal current: 50 A (DC) (range 45-56 A)
• Ignition voltage: 28 kV (recommended minimum, system dependent)
• Operating voltage: 20 V (DC) (range 15-24 V)
• Lifetime: 1000 hours typical
• Max temperature: 150° C
• Radiant output: 245 W
• UV output (<390 nm): 13 W
• IR output (>770 nm): 135 W
• Color temperature: 5900 K
