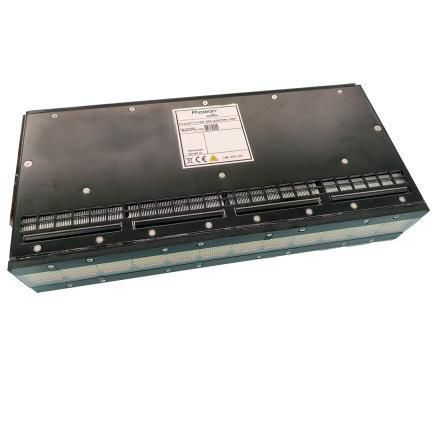

NIR LED

infrarednear-infraredstrip

Product description
Excelitas infrared (IR) LED modules provide precise, uniform, fast and controllable heating in the near infrared wavelength range for industrial applications requiring high control precision. These high-efficiency IR LED products feature modular designs that enable flexible customization to meet specific application requirements. Compared to technologies such as lasers or VCSELs, these modules are easier to integrate into industrial systems. Available in different sizes, Excelitas IR LED modules support a range of application needs and are well-suited for complex processes, including drying solvent-based coatings.
Features

• Precise heating with controlled intensity at targeted area
• Narrow-band operation and selectivity
• Instant on/off operation
• Energy efficient
• Non-contact heating
• Comparable to laser and VCSEL technologies

Specifications

• Wavelengths: 850 nm and 940 nm
• Temperature: below 100 °C; ATEX compatible
• Heating size: length 75–375 mm, width 10–100 mm
• Peak irradiance: maximum 18–20 W/cm²
• Cooling options: air-cooled and water-cooled modules

Applications

• Silicon wafer heating
• Plastic processing and composite material hardening
• Drying and rapid curing of printed electronics
• Specialized textile drying
• Inkjet ink fixing in the printing industry
• Anode and cathode slurry drying in battery manufacturing

Caractéristiques / spécifications techniques

• Product family: Excelitas Infrared LED modules (modular, customizable design)
• Operating wavelengths: 850 nm and 940 nm
• Maximum operating temperature: below 100 °C
• ATEX compatibility indicated
• Available heating sizes: length range 75–375 mm; width range 10–100 mm
• Peak irradiance capability: up to 18–20 W/cm²
• Cooling: air-cooled and water-cooled module options
• Intended for precise, uniform, fast and controllable near-infrared heating
• Suitable for integration into industrial systems and comparison to laser/VCSEL technologies
