Fluorescent light source X-Cite mini+

LEDwhiteUV

Product overview

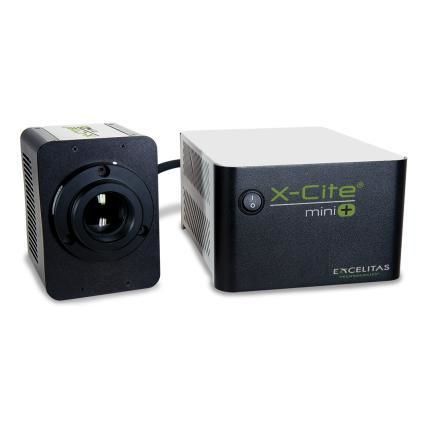

The X-Cite mini+® is a compact white-light LED light source for fluorescence imaging and spatial biology. Designed as a modern replacement for bulb-based systems, it delivers high-power excitation at the sample plane while minimizing bench footprint and maintenance.

Key benefits
Built-in fingertip controls (speedDIAL), hands-free operation via foot pedal, and USB and TTL inputs for automation. Long LED lifetime with LEDs covered by a 20,000-hour warranty; no lamps to change and no mercury disposal. Energy-efficient LEDs provide instant ON/OFF and reduced power consumption.

Features

• LED technology: efficiency, stability, instant ON/OFF, long lifetime, mercury-free
• White-light excitation: compatible with common fluorophores (DAPI, CFP, GFP/FITC, YFP, mCherry/Texas Red, Cy5)
• Direct-coupled design: high-power excitation at the sample plane
• Multiple control options: USB, TTL, speedDIAL and RS-232 (SDK available)
• Small footprint: minimal bench-top space required
• Optimized thermal management: maximizes LED output, lifetime and stability
• X-Cite coupling optics: efficient, uniform optical output

Applications

• Fluorescence imaging
• Spatial biology workflows

Technical specifications

• Includes: X-Cite mini+ Head, miniCube, speedDIAL, microscope flange, accessory kit
• Wavelength range (Model XTMS): 360–700 nm
• UV models available: 365 nm or 385 nm
• External power supply: Universal input 100–240 VAC, 50/60 Hz
• Current: 2.4–1.2 A
• LED ON/OFF response times: 100 µs (TTL) / 1 ms (USB)
• Control options: ON/OFF - TTL compatible, speedDIAL, RS-232 commands (SDK available), USB
• I/O connections: BNC input, USB (B-type), 3.5 mm stereo plug
• Dimensions - HEAD: 100 mm x 135 mm x 110 mm (W x H x D)
• Dimensions - CONTROLLER: 180 mm x 110 mm x 230 mm (W x H x D)
• Dimensions - speedDIAL: 80 mm x 59 mm x 112 mm (W x H x D)
• Weight: 3.4 kg (7.5 lb)
• Certifications: RoHS, CE
• Warranty: LEDs – 20,000 hours; all other X-Cite mini+ components – 1 year (parts and labor)
