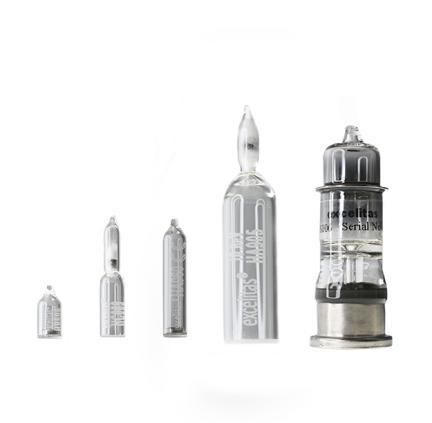

Tubular bulb

lamp

Overview
Excelitas provides DC- and RF-operated photoionization detector (PID) lamps for detecting volatile organic compounds (VOCs) in industrial and environmental monitoring. Lamps are available with a range of gas fills and window materials to match sensor requirements.

Details
PID lamps produce photons in the vacuum ultraviolet (VUV) range to photo-ionize gaseous molecules with ionization potentials below the emitted photon energy. They are used in VOC gas detection, gas chromatography (GC), and sample ionization for mass spectrometry (MS). Typical measurement ranges extend from ppm to ppb levels.

Specifications

• Gas fills: xenon, krypton and other options
• RF lamp sizes: 6x14 mm, 6x30 mm, 12.7x52 mm
• DC lamp size: 19.6x53.5 mm
• Window materials with selectable cut-off wavelengths
• Excitation: DC or RF
• Ionization/photon energies: 8.4 eV to 10.6 eV

Features

• Selectable gas fills and window materials for application-specific selectivity (8.4–10.6 eV)
• High-purity window materials for improved VUV transmission
• Proprietary getter and high-purity gas fills to extend lamp life
• Semi-automated production for consistent lamp performance

Applications

• VOC gas detection
• Gas chromatography (GC)
• Mass spectrometry (MS)
• Field air and soil monitoring
• Emergency first response
• Jar headspace screening
• Leak detection
• Personnel confined-space safety
• Explosives trace detection (ETD)
• Narcotics detection
• BTEX detection (use lamp PKR 100-6-14)

Technical specifications

• Gas fills: xenon, krypton and other options
• RF lamp sizes: 6x14 mm, 6x30 mm, 12.7x52 mm
• DC lamp size: 19.6x53.5 mm
• Window materials: multiple high-purity options with varying cut-off wavelengths
• Excitation: DC and RF
• Photon/ionization energies: 8.4 eV to 10.6 eV
• Proprietary getter technology for extended lamp life
