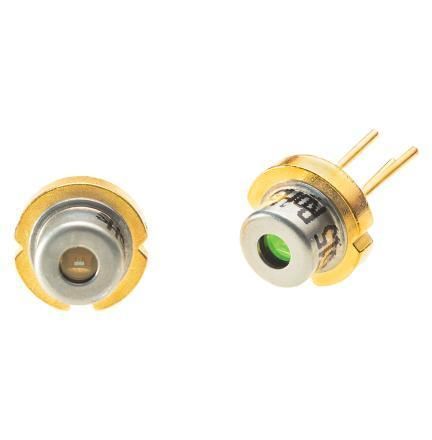

Pulsed laser diode TPG3AU1S04

solid-stateinfrarednear-infrared

Overview
The Excelitas TPG3AU1S04 is a 905 nm pulsed edge-emitting laser diode delivering a peak optical output of 54 W at 18 A. With a 100 × 10 µm emission aperture and a 10 V forward voltage, it is engineered to provide consistent beam performance and efficient thermal behavior for mid- to long-range ToF and LiDAR systems.

Product details
The TPG3AU1S04 occupies a performance niche between compact and ultra-high-power pulsed lasers. Its triple-cavity design and wide emission aperture ensure uniform beam profile and improved thermal dissipation during prolonged high-load operation. The 10 V forward voltage supports lower system power consumption while maintaining strong signal return for extended-range sensing.

Features

• Designed for precise mid- to long-range LiDAR and ToF applications
• Balance of high peak power and energy efficiency

Specifications

• Wavelength: 905 nm pulsed laser diode
• Peak optical output: 54 W at 18 A (10 V forward voltage)
• Power slope: 3 W/A
• Emission aperture/area: 100 × 10 µm (100 µm emission width)
• Triple-cavity edge-emitting architecture
• Package: TO-56

Applications

• Industrial automation and robotics
• 3D sensing for logistics and warehouses
• Mapping, drones and geodata acquisition
• Consumer ToF systems including AR/VR
• Infrared illumination and night vision
• Laser therapy and analytical instrumentation

Technical specifications

• Model / part number: TPG3AU1S04
• Device type: Pulsed edge-emitting laser diode, triple-cavity
• Peak optical output: 54 W at 18 A
• Forward voltage: 10 V
• Power slope: 3 W/A
• Emission aperture: 100 × 10 µm (emission width 100 µm)
• Designed for ToF / LiDAR and industrial sensing
• Package: TO-56
• Optimized for thermal management under long-load operation
