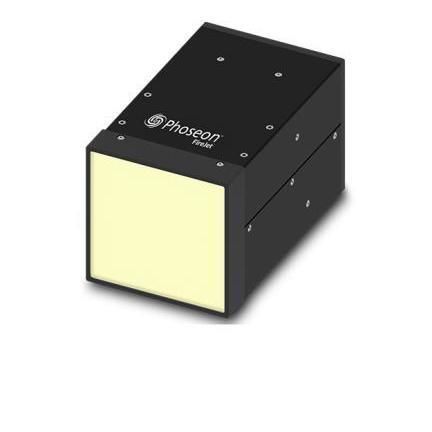

UV LED curing system FireJet™ FJ801

in-lineindustrialfor coating

Overview
The Phoseon FireJet FJ801 UV LED large-area curing system features a compact touchscreen controller with an intuitive interface. The controller has no front-facing knobs or moving parts, simplifying handling, storage and transport. Designed for adhesive and coating curing that require low irradiance and long dwell time on large-scale production lines, the FJ801 provides uniform, reliable UV output and shows process safety data including lamp temperature and cumulative LED operating time.

Details
The FJ801 is modular and scalable from a base UV footprint of 100 mm x 100 mm to provide contiguous, uniform coverage. Available wavelengths: 365 nm, 385 nm, 395 nm and 405 nm. Patented TargetCure™ technology delivers process stability and predictable UV output. The FJ801 controller is backward compatible with the FJ800 lamp.

Features

• Touchscreen controller with no front-facing knobs or moving parts
• Optimized for low irradiance, long dwell-time, large-scale production lines
• High uniformity and operational reliability
• Displays lamp temperature and cumulative LED operating hours
• TargetCure™ technology for precise, predictable UV output

Applications

• Coating and adhesive curing in electronics manufacturing
• Area curing for micro‑speakers and camera module assembly

Technical specifications

• Model: FireJet™ FJ801
• Wavelengths: 365 nm; 385 nm; 395 nm; 405 nm
• Peak irradiance (10 mm): 1.2 W/cm² (365 nm); up to 1.7 W/cm² (385, 395, 405 nm)
• Total output power (10 mm): 120 W (365 nm); 170 W (385 / 395 / 405 nm)
• UV footprint (base, scalable): 100 mm x 100 mm
• Uniformity (measured at 9 spots): >85%
• Noise level: <77 dBA
• Controller: touchscreen; displays lamp temperature and total operating time
• Technology: TargetCure™ for process stability and predictable UV output
• Backward compatibility: FJ801 controller compatible with FJ800 lamp
