Xenon bulb PE150AF

compacthigh-power12VDC

Product Overview

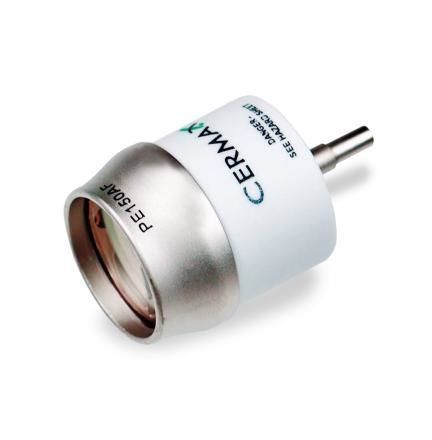

The PE150AF is the smallest lamp in the Cermax® portfolio. Despite its compact size, it delivers the same full-spectrum performance required for high-intensity applications. The lamp features a pre-aligned parabolic reflector and a ceramic body, making it suitable for installations where a small footprint and reliable optical alignment are required.

Key Features

• High visible output: 1,350 Lumens
• Nominal power: 150 Watts (operational range 100–150 W)
• Nominal current: 11 A (DC); current range 10–14 A (DC)
• Color temperature: 5,900 K (broad spectral range)
• Typical lifetime: 1,000 hours
• Radiant output: 16 W; UV (<390 nm): 0.9 W; IR (>770 nm): 8 W
• Ignition voltage: 23–30 kV (system dependent)

Technical specifications

• Reflector Type: Parabolic
• Body Type: Ceramic
• Total Visible Output: 1350 Lumens
• Power - Nominal: 150 Watts
• Power - Range: 100-150 Watts
• Current - Nominal: 11 Amps (DC)
• Current - Range: 10-14 Amps (DC)
• Ignition Voltage: 23-30 kilovolts (system dependent)
• Operating Voltage - Nominal: 11.7 Volts (DC)
• Operating Voltage - Range: 10-13.6 Volts (DC)
• Lifetime: 1000 hours typical
• Temperature: 120 °C (maximum)
• Radiant Output: 16 Watts
• UV Output (<390 nm): 0.9 Watts
• IR Output (>770 nm): 8 Watts
