Spot bulb PE300BFA

xenonhigh-power

Overview

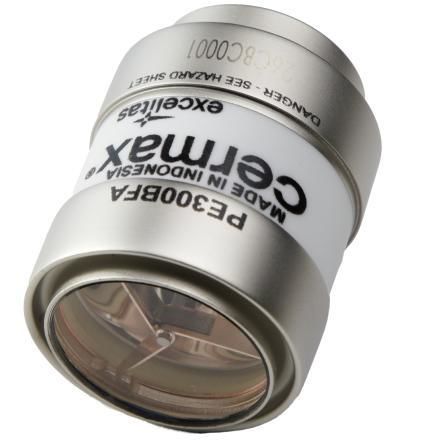

The PE300BFA is a Cermax® 300 W xenon lamp engineered for endoscope illumination. Known for high brightness, broad spectral range and a tightly focused beam, this lamp is widely used in diagnostic and surgical endoscopes in major hospitals worldwide.

Key features

• High-intensity illumination: 5,000 Lumens
• Power range: 180-320 Watts
• Broad spectral range with 5,900 K color temperature
• Lamp lifetime: 1,000 hours (typical)
• Ceramic body with parabolic reflector for focused beam
• Common application: diagnostic and surgical endoscope illumination

Technical specifications

• Reflector type: Parabolic
• Body type: Ceramic
• Total visible output: 5,000 Lumens
• Power - nominal: 300 Watts
• Power - range: 180-320 Watts
• Current - nominal: 21 Amps (DC)
• Current - range: 10-22 Amps (DC)
• Ignition voltage: 23-35 kilovolts (system dependent)
• Operating voltage - nominal: 14 Volts (DC)
• Operating voltage - range: 13-16 Volts (DC)
• Lifetime: 1,000 hours (typical)
• Maximum temperature: 150 °C
• Radiant output: 50 Watts
• UV output (<390 nm): 2.6 Watts
• IR output (>770 nm): 29 Watts
