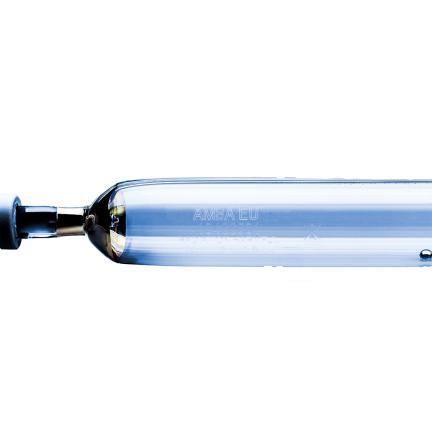

Tubular bulb Amba®

mercury

Product overview
Amba UV curing mercury arc lamps are designed for reliable curing results and come in various lengths and power classes. They are suitable as replacement lamps for applications such as printing, wood coating and many other UV curing processes. OEM designers can obtain technical consulting and in-house testing for lamp performance. Each Amba UV lamp is double-tested and supplied with a 200% performance guarantee.

Important safety information

• Lamps contain mercury. Manage and dispose in accordance with local, state or federal regulations.

Features

• 200% performance guarantee (each lamp tested twice before shipment)
• More than 10,000 lamp types including uncommon lengths, special output characteristics and Medium Heat (MH) additives
• Consistent high UV emission throughout lamp lifetime for efficient curing
• Strong seals, immaculate quartz glass, high-quality electrodes and connectors
• Custom lamp configurations to match customer requirements

Applications

• Flexo printing
• Graphic arts
• Inkjet printing
• Large format printing
• Label printing
• Metal decoration
• Narrow- and wide-web
• Offset printing
• Optical lens coating
• Packaging

Specifications (summary)
Lamp length: arc lengths from 12 mm up to 3.9 meters
Power class ratings: from 80 W/cm to 400 W/cm
Order quantities: single replacement lamps up to large batch orders for common types
Enhanced spectral outputs available for applications requiring longer wavelengths; additives include gallium, iron and rare-earth metal iodides

Technical specifications

• Lamp arc length range: 12 mm to 3.9 m
• Power class ratings: 80 W/cm to 400 W/cm
• Available as single replacements or large batch quantities
• Enhanced spectral outputs possible via additives (gallium, iron, rare-earth iodides)
• Manufacturing quality: immaculate quartz glass, strong seals, high-quality electrodes and connectors
• Testing: each lamp 200% performance tested (tested twice before shipment)
