Microwave curing system

UVfor coatingindustrial

Overview

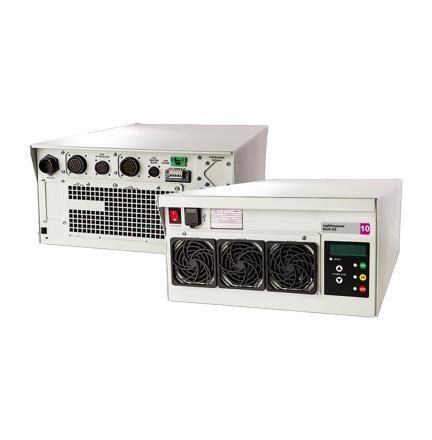

The LightHammer 10 Mark III is an IoT-ready, microwave-powered UV curing system featuring a 10-inch irradiator and a 240 W/cm (600 W/in) power class. Embedded sensors in both the irradiator and the solid-state power supply provide real-time performance data for process control, predictive maintenance and reduced downtime. Units can be combined for wider cure widths or arranged to cure complex geometries.

Features

• Real-time monitoring of multiple operating parameters from sensors in the irradiator and power supply for process optimization and reduced operational cost.
• Optional Advanced Intelligent Monitoring System (AIMS®) support or customer software integration for data access and alerts.
• Data usable for system diagnostics, performance trending and predictive maintenance plans.
• Intelligent irradiator with the same form and fit as LHI10 Mark II irradiators — direct replacement possible.
• Smart Power Supply with flexible software control, lower operating cost, reduced size and weight.

Applications

• Adhesive bonding
• Automotive components
• Metal and glass decorating/coating
• Medical device marking and coating
• Electronic components
• Plastic decorating

Safety / Environmental

• Lamps contain mercury. Dispose and manage lamps according to local, regional or national regulations.

Technical specifications

• Irradiator size: 10 inch irradiator
• Power class: 240 W/cm (600 W/in)
• Smart Power Supply: software-controllable, reduced operating costs, smaller and lighter unit
• Intelligent irradiator: internal sensors measure multiple operating parameters for real-time monitoring
• Irradiator footprint: 266.7 x 200 mm
• Lamp bulb length: 25 cm; available in D, H and V spectra
• Variable power range: 35% to 100%
• Fast restart capability
• IoT-enabled: sensors in irradiator and solid-state power supply for remote and real-time monitoring
• Optional AIMS® support for parameter monitoring, diagnostics and predictive maintenance
• Form/fit compatible with LHI10 Mark II irradiators (direct replacement)
