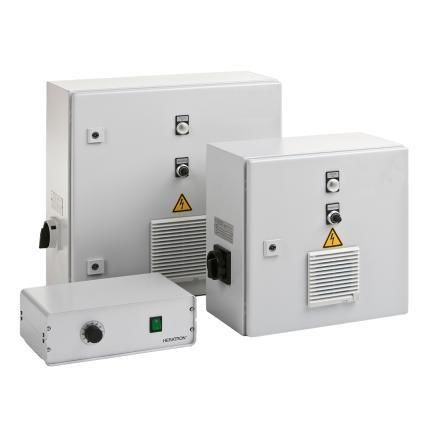

Monitoring control system

automationtemperaturemeasurement

Product overview
Excelitas offers a wide range of infrared control systems, from simple power controllers to fully integrated PLC-based automation solutions. These systems are engineered to optimize infrared emitter performance across power ranges and to be combined with custom IR modules for tailored industrial heating processes.

Noblelight design and protection
Noblelight infrared control systems feature robust housings that ensure electrical safety and protection in harsh industrial environments. Systems provide full control and monitoring of emitter modules, including automatic ventilation control and temperature supervision.

Features

• Infinitely variable power output using zero-wear, low-loss semiconductor power boards.
• Power-setting methods adapted to specific processes.
• Nominal infrared output adjustment via potentiometers, regulators or external signals.
• Interface options: discrete contacts, analog signals or fieldbus systems for process integration.
• Robust industrial housing delivering maximum protection and electrical safety.
• Contact breakers or fuses to protect emitter circuits with small, serviceable power cross-sections.
• Emergency stop function to isolate the load from the mains supply.
• Identification and reporting of failures: emitter, load fuse, load board or load voltage.
• Control and monitoring of emitter modules, including automatic ventilation control and temperature monitoring.
• Industry-standard regulators: configurable display of setpoint/actual values, timers, program indicators, ramp and limit functions, PID self-optimization, manual/automatic test modes.

Applications and customization
Configurations range from basic power controllers to PLC-based integrated automation. Systems can be combined with optimized emitters and bespoke IR modules to meet specific industrial heating requirements and process constraints.

Technical specifications

• Power control: infinitely variable semiconductor power boards (zero wear, low loss).
• Power-setting options: potentiometers, regulators, external control signals.
• Control interfaces: discrete contacts, analog signals, fieldbus support (PLC integration).
• Protection: robust industrial housing; contact breakers or fuses for emitter circuits.
• Safety: emergency stop isolating load from mains.
• Monitoring: emitter failure detection; load fuse/board/voltage fault reporting; temperature monitoring.
• Ventilation: automatic control of module ventilation.
• Regulators: display setpoint/actual values; timers; program indicators; ramp and limit functions; PID self-optimization; manual/automatic tests.
• Configuration: available from simple controllers to fully PLC-integrated automation; customizable with optimized emitters and IR modules.
