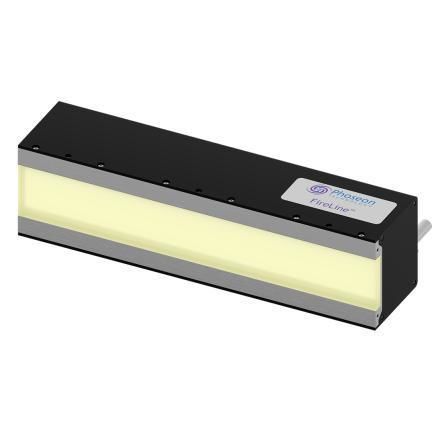

UV LED curing system FireLine™ FL440

UVindustrialfor coating

Overview
The Phoseon FireLine FL440 is a water-cooled UV LED area curing system designed to deliver high total UV energy for demanding single-pass curing applications. With an IP66-rated enclosure and scalable architecture, the FL440 adapts to various production widths and provides consistent optical uniformity.

Key details
The 40 mm-wide emitting window extends exposure time and increases UV dose to enable complete curing in one pass. Modular lamp lengths accommodate custom printing widths. Optional Modbus TCP supports high-speed data exchange and remote monitoring.

Features

• Water-cooled UV LED area curing system
• IP66-rated enclosure
• 40 mm-wide emitting window for extended exposure and higher dose
• Scalable to custom lengths to match printing requirements
• High optical uniformity for consistent curing
• Optional Modbus TCP protocol for integration and remote access
• Peak irradiance up to 16 W/cm² at 385 / 395 / 405 nm; 12 W/cm² at 365 nm

Documentation (available)

• Phoseon FireLine FL440 Datasheet
• Phoseon FireLine FL440 User Manual
• Modbus TCP Communication Protocols Technical Note

Applications

• Printing (single-pass UV curing)
• Coatings
• Adhesives

Characteristics / Technical Specifications

• Wavelengths: 365 nm; 385, 395, 405 nm
• Peak irradiance: 12 W/cm² (365 nm); 16 W/cm² (385/395/405 nm)
• Emitting window (mm): 125x40, 150x40, 225x40, 250x40, 300x40
• DC Power In (Max): 1392 W / 35 A; 1670 W / 42 A; 2504 W / 63 A; 2743 W / 69 A; 3340 W / 84 A (config set 1) and 1600 W / 33 A; 1920 W / 40 A; 2880 W / 60 A; 3200 W / 67 A; 3840 W / 80 A (config set 2)
• Chiller/Cooler capacity: 1312 W; 1575 W; 2362 W; 2625 W; 3150 W
• Chiller/Cooler flow rate: 4 LPM; 6 LPM; 6 LPM; 8 LPM; 8 LPM
• Typical pressure drop: 0.04 Bar (0.5 psi); 0.09 Bar (1.2 psi); 0.11 Bar (1.5 psi); 0.18 Bar (2.5 psi); 0.19 Bar (2.75 psi)
• DC power connector options: 3W3, 5W5, 7W7 (varies by configuration)
