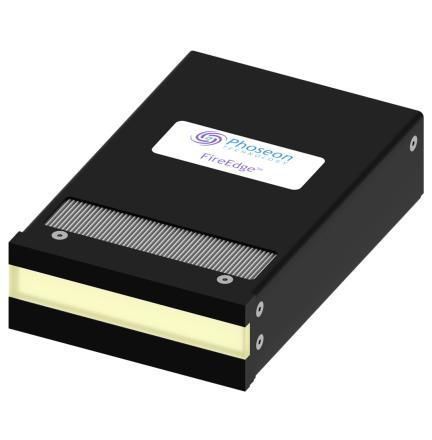

UV curing system FireEdge™ FE410

UV LEDhigh-performancefor 3D printers

Overview The FireEdge™ FE410 UV LED curing system delivers up to 50% higher irradiance, power, and dose compared with the FireEdge FE400 to enable faster processing speeds while maintaining a compact FE400 form factor. Designed for full cure and pinning applications, the FE410 offers built-in intensity and segment control options suitable for inkjet pinning, 3D printing, and adhesive curing. Segment control reduces energy use and allows targeted UV coverage.

Core technologies

• TargetCure technology: patented system providing precise, predictable UV output for process stability.
• WhisperCure technology: reduced acoustic emissions while maintaining high UV output in a compact package.
• Scaling/stacking: units can be stacked end-to-end to create contiguous, uniform UV coverage across larger application sizes.

Key features

• Wide-range intensity control for process tuning.
• Individual segment control for tailored UV coverage and energy savings.
• Compact small-area curing design for easy integration into production lines.
• Available accessories: cables, power supply, hub unit, optical output options, protective cover glass, extended warranty.
• Peak irradiance: up to 10 W/cm² at 385, 395, 405 nm (configuration-dependent).

Applications

• Adhesives
• Digital inkjet printing (pinning & full cure)
• 3D printing
• Screen printing

SPECIFICATIONS Wavelength: 365 nm | 385, 395, 405 nm
Peak Irradiance*: 6 W/cm² (365 nm) | 10 W/cm² (385/395/405 nm)
Emitting Window (mm): 80×10, 120×10, 160×10, 180×10, 240×10
48Vdc Power In (Maximum): 143W / 3.0A; 227W / 4.7A; 269W / 5.6A; 322W / 6.7A; 432W / 9.0A | 201W / 4.2A; 280W / 5.8A; 385W / 8.0A; 401W / 8.4A; 502W / 10.5A
*Peak irradiance is expected to drop by ~10% after replaceable cover glass is mounted.

Caractéristiques / Spécifications techniques

• Model: FireEdge™ FE410
• Brand: Phoseon
• Wavelength options: 365 nm; 385, 395, 405 nm
• Peak irradiance: 6 W/cm² (365 nm) and 10 W/cm² (385/395/405 nm) (peak)
• Emitting window sizes (mm): 80×10, 120×10, 160×10, 180×10, 240×10
• Maximum 48Vdc input power and current (by configuration): 143W/3.0A; 201W/4.2A; 227W/4.7A; 269W/5.6A; 280W/5.8A; 322W/6.7A; 385W/8.0A; 401W/8.4A; 432W/9.0A; 502W/10.5A
• Process stability via TargetCure technology for predictable UV output
• WhisperCure technology for reduced acoustic emissions
• Intensity control and individual segment control for tailored curing and energy savings
• Scalable/stackable design for contiguous, uniform UV coverage across any application size
• Typical accessories: cables, power supply, hub unit, optical output options, protective cover glass, extended warranty
• Note: peak irradiance is reduced by ~10% when replaceable cover glass is installed
