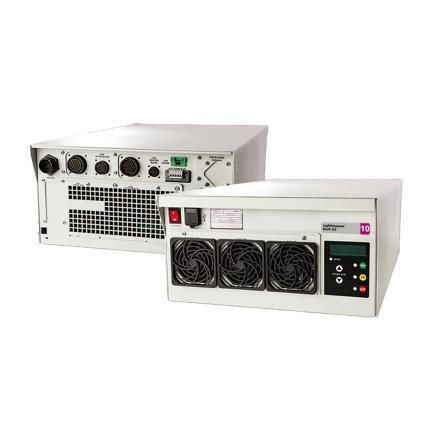

UV curing system LightHammer® 10 Mark III

microwavefor coating

Product Overview
The LightHammer® 10 Mark III is an IoT-ready, microwave-powered UV curing system featuring a 10 inch irradiator and a 240 W/cm (600 W/in) power class. Sensors in both the irradiator and the solid-state power supply provide real-time performance data to minimize downtime, optimize processes and reduce operating costs. Multiple units can be combined to increase curing width or to cure complex parts.

Safety
Lamps contain mercury. Handle and dispose in accordance with local, state or federal regulations.

Specifications

• Smart power supply: flexible software control for reduced operating costs; compact, lighter design
• Intelligent irradiator: onboard sensors measure 8 operating parameters for real-time monitoring to increase uptime and lower total cost of ownership
• Irradiator footprint: 266.7 x 200 mm
• Lamp bulb length: 25 cm; available in D, H and V spectra
• Power class: 240 W/cm (600 W/in)
• Variable power: 35%–100% with fast restart capability

Features

• Delivers accurate real-time data to reduce total cost of ownership, increase equipment and production uptime, and improve operational intelligence and reliability
• System parameters can be monitored via the optional Advanced Intelligent Monitoring System (AIMS®) software or through customer software
• Data supports system performance monitoring, diagnostics and predictive maintenance
• Intelligent irradiator maintains the form and fit of existing LHI10 Mark II units and can be a direct replacement

Applications

• Adhesive bonding
• Automotive components
• Metal decorating and coating
• Glass decorating
• Medical device marking and coating
• Electronic components
• Plastic decorating

Technical specifications

• Smart power supply: flexible control via software; reduced operating costs; smaller and lighter weight
• Intelligent irradiator: sensors measure 8 operating parameters for real-time monitoring
• Irradiator footprint: 266.7 x 200 mm
• Lamp bulb length: 25 cm (available in D, H, V spectra)
• Power class: 240 W/cm (600 W/in)
• Variable power capability: 35%–100%; fast restarting
