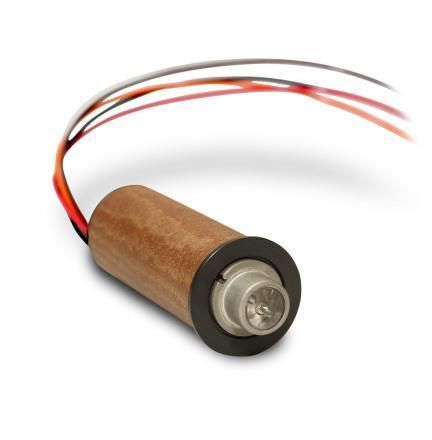

Xenon lamp light source nPAX-N2

visibleultravioletinfrared

OverviewThe ultra compact nPAX-N2 is a 2 Watt pulsed xenon light source providing an integrated solution that includes the flash lamp, trigger circuit, capacitor charging power supply, mounting flange and precision arc alignment. Its small form factor and high stability make the nPAX-N2 ideal for point-of-care analytical instruments and environmental analytics.DescriptionThe nPAX-N2 delivers a range of flash energy levels with up to 2 W maximum power in a compact, pre-aligned module. It uses Excelitas' high-stability short-arc xenon flash lamps, known for stable output and long lifetime, producing a continuous spectrum from ultraviolet to infrared.FeaturesIntegrated flash lamp, trigger circuit, capacitor charging power supply, mounting flange and precision arc alignmentCompact form factor with high stabilityMultiple flash energy level optionsContinuous spectrum output from UV to IRPre-aligned module for simplified integrationTechnical specificationsHigh stability < 1.0%Long lifetimeExternal and internal reference voltage controlFlexible flying leads inputBattery operableSeparate mounting flange includedMaximum power: 2 W
