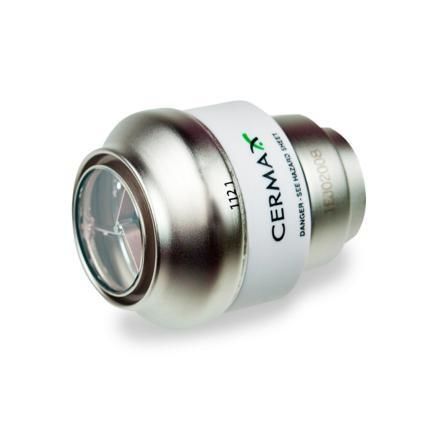

Xenon bulb PE500C-13F

infraredhigh-power15VDC

Product overviewThe PE500C-13F is a 500W Cermax® elliptical xenon lamp with a ceramic body, delivering 10,500 lumens and a 5,900 K correlated color temperature. It provides a broad spectral output for accurate color rendition and consistent high-intensity illumination in demanding industrial environments. Typical lifetime is 1,000 hours under recommended operating conditions.SpecificationsReflector Type: Elliptical, f/1.3Body Type: CeramicTotal Visible Output: 10,500 LumensColor Temperature: 5,900 KelvinPower - Nominal: 500 WattsPower - Range: 350-525 WattsCurrent - Nominal: 32 Amps (DC)Current - Range: 25-35 Amps (DC)Ignition Voltage: 23 kilovolts (recommended minimum, system dependent)Operating Voltage - Nominal: 15.5 Volts (DC)Operating Voltage - Range: 14-16.5 Volts (DC)Lifetime: 1,000 hours (typical)Maximum Temperature: 150° CRadiant Output: 112 WattsUV Output (less than 390 nm): 5 WattsIR Output (greater than 770 nm): 65 WattsRecommended applicationsIndustrial inspection and machine vision requiring high-intensity, accurate colorProjection and imaging systemsColorimetry and spectral analysisEnvironments where quartz lamps degrade
