UV curing system DRC series

microwaveair-cooledfor coating

Overview

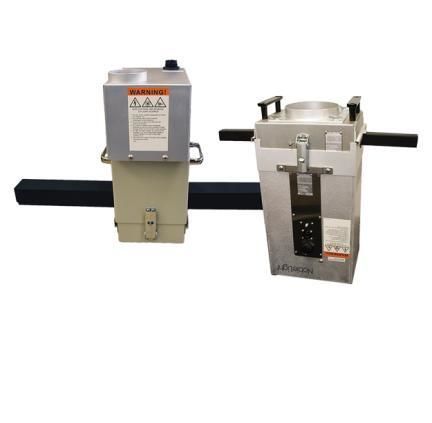

The Fusion UV DRC Series microwave-powered UV curing systems cure inks and coatings on wire, cable and other linear products. Models C6 and C10 are optimized for high-speed inkjet marking and jacketing processes. A specialty light shield creates a focused UV exposure zone around the cable or wire to ensure consistent curing.

How it works
C6 and C10 light shields mount to six- or ten-inch microwave-powered UV irradiators (modular lamp modules) to provide a compact, high-efficiency curing solution. Each light shield contains a half-elliptical secondary reflector which, together with the irradiator reflector, forms a full ellipse with the UV bulb at one focus. The target wire or cable passes through a square shield extension and traverses the concentrated UV zone. Modular lamp design and matched power supplies support stable, high-intensity output for inline production.

Safety
Lamps contain mercury. Dispose and handle in accordance with applicable local, state and federal regulations.

Key specifications (summary)

• Electrodeless bulb available in multiple spectral outputs
• Lamp modules: 6-inch (C6) or 10-inch (C10) with selectable power levels
• Power supply matched to chosen lamp module
• Light shield with secondary elliptical reflector housing and shield extensions (C6 for 6-inch, C10 for 10-inch)

Features

• Delivers UV energy around the full circumference of small-diameter wire and partial coverage on larger cable surfaces on the lamp side
• Split-body light shield provides easy access at the wire line for service and wiring
• Combined lamp blower and exhaust blower enable push-pull air cooling to limit fumes in the work area
• Electrodeless lamp design for stable output over extended production runs

Documentation

• C6/C10 Wire and Cable Curing Systems Brochure (product brochure)

Applications

• Wire marking and coating
• Cable jacketing marking and coating
• Fiber optic strength member rods

Additional details
The DRC Series is modular for OEM integration or retrofit into existing curing stations. The split-body light shield opens at the wire line for quick setup, maintenance or wire threading without removing the full housing. All models are air-cooled with push-pull ventilation to control temperature and fumes.

Technical specifications

• Electrodeless bulb available in different spectral outputs
• Lamp module: 6-inch (C6) or 10-inch (C10) with selectable power levels
• Power supply matched to chosen lamp module
• Light shield with secondary elliptical reflector housing and shield extensions
• C6-1 / C10-1: 1-inch (25.4 mm) square shield extension, 6 inches (152.4 mm) long (for smaller wire diameters)
• C6-2 / C10-2: 2-inch (50.8 mm) square shield extension, 12 inches (304.8 mm) long (for larger cable types)
• Half-elliptical secondary reflector plus irradiator reflector form full ellipse with UV bulb at one focus for concentrated exposure
• Split-body construction allows operation in any orientation and provides easy wire-line access
• Air-cooled with lamp blower and exhaust blower for push-pull ventilation
• Designed to deliver 360° UV exposure around small-diameter linear substrates and partial coverage on larger cable surfaces
• Modular design supports integration into production lines and OEM equipment
• Electrodeless lamp design for stable, high-intensity output over long production runs
