Red LED SharpDot™

greenfor printed circuit boardscustom

Product overview

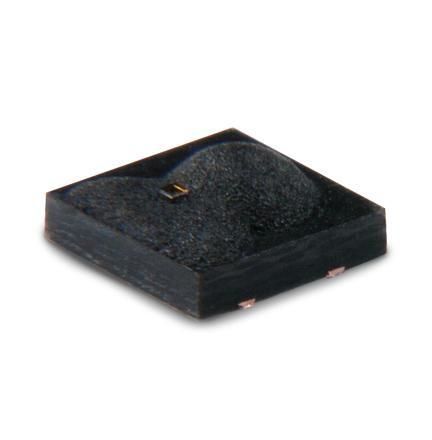

Excelitas SharpDot point source and reticle LEDs use Resonant Cavity LED (RCLED) technology to produce sharp, well-defined dots and reticle patterns for red dot applications. The family delivers high electrical-to-optical efficiency for extended battery life and can operate at very low currents for night-vision compatible systems. A matte black encapsulation reduces stray light and reflections, improving pattern contrast. Multiple dot sizes, reticle geometries and color options are available, with standard and custom configurations supported by Excelitas.

Key features

• RCLED technology for crisp point and reticle patterns
• High electrical-to-optical efficiency for prolonged battery operation
• Point source sizes (red & green): 10 μm, 25 μm, 50 μm
• Red reticle: 13 μm dot with 440 μm outer ring
• Green reticle: 25 μm dot with 415 μm outer ring
• Matte black encapsulation to minimize reflections
• RoHS compliant
• Options available:
  • Custom dot sizes
  • Custom reticle patterns and geometries
  • Assembly on rigid or flex PCB

Available configurations

• Red 650 nm | Point Source | 10 μm | 4303-355-000-25
• Red 650 nm | Point Source | 25 μm | 4303-355-000-35
• Red 650 nm | Point Source | 50 μm | 4303-355-000-28
• Green 525 nm | Point Source | 10 μm | 4303-355-000-34
• Green 525 nm | Point Source | 25 μm | 4303-355-000-30
• Green 525 nm | Point Source | 50 μm | 4303-355-000-33
• Red 650 nm | Reticle | 13 μm dot & 440 μm outer ring | 4303-355-000-31
• Green 525 nm | Reticle | 25 μm dot & 415 μm outer ring | 4303-355-000-32

Technical specifications & applications

• Technology: Resonant Cavity LED (RCLED)
• Wavelengths: Red 650 nm, Green 525 nm
• Point source sizes: 10 μm, 25 μm, 50 μm (red & green)
• Reticle options: Red — 13 μm dot with 440 μm outer ring; Green — 25 μm dot with 415 μm outer ring
• Encapsulation: Matte black to reduce stray reflections
• Compliance: RoHS compliant
• Customization: Dot sizes, reticle geometries, assembly on rigid or flex PCBs
• Typical applications: Red dot sights, night-vision compatible aiming systems, low-current battery-powered devices and precision pointing applications
