Infrared emitter CIR®

IRshortwavemedium wave

Product overview Noblelight carbon infrared emitters (CIR®) feature a unique heating filament design that combines efficient radiation with very short response times in the seconds range. The unique twin-tube layout (the 'Golden 8') delivers higher radiation density and improved mechanical stability. Carbon infrared emitters are also available as round tubes.

Benefits These carbon infrared emitters are suitable for water-based coatings and materials such as plastics, glass and textiles, which exhibit high energy absorption in the medium IR wavelength range. Switching to medium-wave carbon infrared emitters can reduce energy consumption; tests indicate up to 30% less energy for drying water-based paints and varnishes compared with conventional short-wave emitters.

Features

• High-quality quartz glass for efficient transmission and thermal stability
• Carbon heating filament with extremely short response time
• Robust ceramic lamp base
• Gold reflector for directed radiation and high efficiency
• Twin quartz tube for high stability and double the power
• Available in different lengths for maximum flexibility

Applications

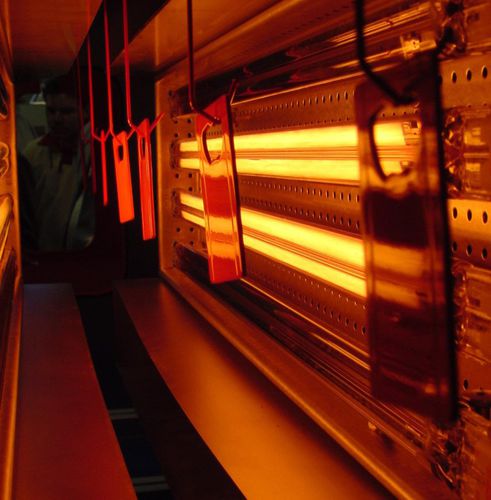

• Drying of water-based inks and coatings
• Heat processing of glass, coatings and plastics
• Curing of adhesives

Technical specifications

• Types: Carbon twin tube; Carbon round tube
• Power: 60 W/cm (Carbon twin tube); 30 W/cm (Carbon round tube)
• Maximum heated length: 2500 mm (Carbon twin tube); 1600 mm (Carbon round tube)
• Cross section: 34 x 14 mm (Carbon twin tube); 19 mm (Carbon round tube)
• Filament temperature: 700–1470 °C (Carbon twin tube); 700–1520 °C (Carbon round tube)
• Wavelength: 2 µm (both types)
• Maximum power density: 110 kW/m² (Carbon twin tube); 85 kW/m² (Carbon round tube)
• Response time: 1–2 s (both types)
