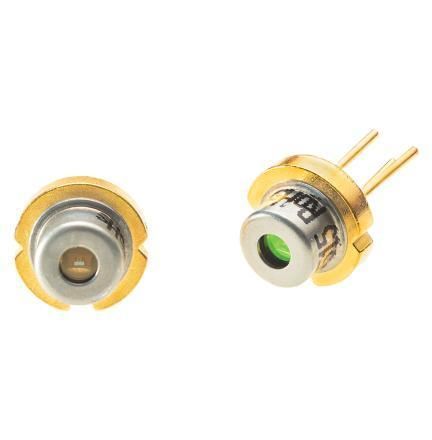

Pulsed laser diode TPG3AU1S03solid-stateinfrarednear-infrared
Add to favorites
Compare this product
Characteristics
- Operational mode
- pulsed
- Technology
- solid-state
- Spectrum
- infrared, NIR, near-infrared
- Applications
- industrial, instrumentation, for distance measurement, LIDAR
- Other characteristics
- diode
- Power
38 W
- Wavelength
905 nm
Description
Product overview
The Excelitas TPG3AU1S03 is a 905 nm pulsed edge-emitting laser diode with a triple-cavity architecture and a 75 × 10 µm emission aperture (75 µm emission width). It provides 38 W peak output power at 13 A with a forward voltage of 11 V, housed in a compact TO-56 package. The large emission aperture supports efficient thermal handling and stable beam shaping for mid- to long-range Time-of-Flight (ToF) and LiDAR systems. Positioned between lower-power (16 W) and ultra-high-power (120 W) variants, this model serves systems requiring extended range and stronger return signals in industrial environments.
Features
Applications
Documentation (available)
Technical specifications
The Excelitas TPG3AU1S03 is a 905 nm pulsed edge-emitting laser diode with a triple-cavity architecture and a 75 × 10 µm emission aperture (75 µm emission width). It provides 38 W peak output power at 13 A with a forward voltage of 11 V, housed in a compact TO-56 package. The large emission aperture supports efficient thermal handling and stable beam shaping for mid- to long-range Time-of-Flight (ToF) and LiDAR systems. Positioned between lower-power (16 W) and ultra-high-power (120 W) variants, this model serves systems requiring extended range and stronger return signals in industrial environments.
Features
- Designed for precise short- to mid-range LiDAR and ToF systems
- Balanced performance and efficiency for system integration
- Compact TO-56 edge-emitting package for straightforward mounting
Applications
- Industrial automation and robotics
- 3D sensing for logistics and warehouse management
- Mapping, drones and geodata acquisition
- Consumer ToF systems (AR/VR)
- Infrared night illumination
- Laser therapy
- Analytical instrumentation
Documentation (available)
- TPG3AU1S03 Datasheet (PDF)
- TPG3AU1S03 CAD Stepfile (ZIP)
- TPG3AU1S03 ZEMAX Rayfiles (ZIP)
Technical specifications
- Wavelength: 905 nm (pulsed laser diode)
- Peak output power: 38 W at 13 A
- Forward voltage: 11 V (at specified operating condition)
- Power slope: 3 W/A
- Emission aperture / width: 75 × 10 µm (75 µm emission width)
- Package: TO-56 edge-emitting laser
- High-reliability design suitable for mid- to long-range sensing
- Targeted use cases: LiDAR, ToF, industrial sensing, infrared illumination
