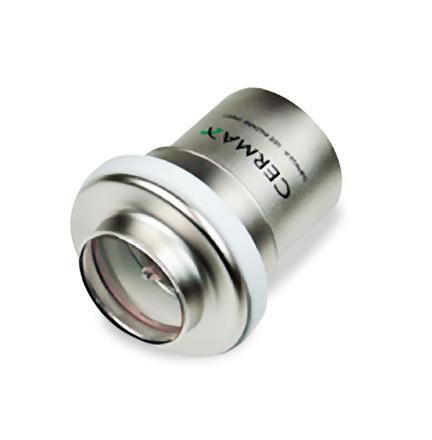

Xenon bulb ME300C-10F

compact

Product description
Compact Cermax ME and VQ metal-body elliptical Xenon short-arc lamps designed for high-intensity, focused illumination in instrumentation and medical applications. The lamps feature a precision-cut internal elliptical f/1.0 reflector and metal-to-sapphire and ceramic seal construction, providing a compact alternative to conventional quartz-bubble Xenon lamps and recommended for new Xenon illumination designs.

Optical and performance
Cermax ME lamps use an integrated elliptical (f/1.0) reflector to deliver concentrated, high-luminance output. Two reflector options enable optical tailoring of beam distribution for specific applications. The Xenon source offers a broad spectrum and can be filtered to emit visible, UV (<390 nm) or IR (>770 nm) output according to the application. Standard metal-body elliptical Xenon lamps have operating power ranges from 300 to 1,600 Watts, with common nominal models at 300 W.

Typical applications

• Fiber optic illumination
• Analytical instrumentation
• Endoscopy and laparoscopy
• Microscopy

Specifications

• Reflector Type: Parabolic
• Body Type: Metal
• Total Visible Output: 5500 Lumens
• Power - Nominal: 300 Watts
• Power - Range: 275-325 Watts
• Current - Range: 17-23 Amps (DC)
• Minimum Ignition Voltage: 23 kilovolts (system dependent)
• Operating Voltage - Nominal: 13.5 Volts (DC)
• Operating Voltage - Range: 12-15 Volts (DC)
• Lifetime: 1000 hours typical
• Maximum Temperature: 150° C
• Radiant Output: 75 Watts
• UV Output (<390 nm): 4.0 Watts
• IR Output (>770 nm): 37 Watts
