UV light guide OmniCure® S

high-powerfiber opticfiber optics

Overview
The OmniCure® S Series provides modular light guides and optical adapters for UV spot and line curing applications. Options include single-, dual- and triple-leg liquid light guides, high-power fiber guides and lines, and adapters for spot, ring and line configurations to support multi-site curing and targeted component processing.

Products / Options

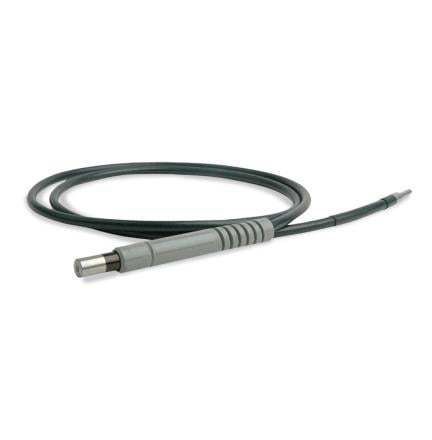

Liquid Light Guide
Available with 3 mm, 5 mm and 8 mm tip diameters and standard lengths from 750 mm to 3000 mm. Dual- and triple-leg versions support simultaneous curing at multiple sites.

High-Power Fiber Light Guide
Delivers uniform distribution of light energy from one source to several cure points for consistent multi-site processing.

High-Power Fiber Light Line
Generates a high-output linear beam with continuous fibers from input to termination to reduce coupling losses and improve line uniformity.

UV Cure-Ring Optical Adapter
Provides 360° curing around a guide; standard rings for Liquid Light Guides are offered in solid or slotted configurations.

UV Light-Line Optical Adapter
Produces a focused linear beam for efficient curing of small rows of components, tubing or cables up to approximately 2 inches in line length.

Adjustable Spot Collimating Adapter
Allows a uniform spot adjustable from 1" to 6" (2.54–15.2 cm) to distribute power evenly across the target area.

Technical specifications

• Series name: OmniCure® S Series
• Liquid Light Guide tip diameters: 3 mm, 5 mm, 8 mm
• Liquid Light Guide standard lengths: 750 mm to 3000 mm
• Liquid Light Guide configurations: single-leg, dual-leg, triple-leg (multi-site curing)
• High-Power Fiber Light Guide: equal light distribution to multiple cure sites from single source
• High-Power Fiber Light Line: continuous fibers from input to termination to minimize coupling losses
• UV Cure-Ring: 360° curing; available in solid or slotted versions for Liquid Light Guides
• UV Light-Line Adapter: focused linear beam, effective up to ~2 inches line length
• Adjustable Collimating Adapter: uniform spot size adjustable from 1" to 6" (2.54–15.2 cm)
• Intended applications: UV spot and line curing for components, tubing, cables and multi-site assembly processes
