Lamp light source

ultravioletUVmonochromatic

Overview

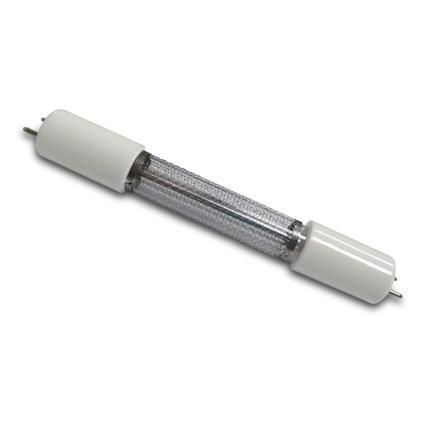

Excelitas Linear Excimer Lamps produce eye-safe narrow-band 222 nm UV-C output with materials and electrode design optimized for reliable UV-C operation, delivering long service life and consistent output. The electrode assembly is isolated from the plasma discharge to extend electrode life. Standard linear sizes are offered and co-axial excimer geometries can be customized for specific form factors and integration requirements.

Key Features

• 222 nm narrow-band emission considered eye-safe and effective for microbial disinfection
• Linear co-axial geometry for efficient collection with reflectors or uniform surface sterilization
• Available in standard lengths or customizable to specific form factors and applications
• Extended operational lifetime measured in thousands of hours

Documentation

• Excimer Linear Lamps EL01-60 Datasheet
• Excimer Linear Lamps EL01-150 Datasheet
• Excimer Linear Lamps EL01-E Datasheet

Technical characteristics / specifications

• Product: Excimer Linear Lamps (EL01 series)
• Wavelength: 222 nm (narrow-band UV-C)
• Safety: 222 nm considered an eye-safe narrow band
• Geometry: Linear with co-axial emission for reflector collection or uniform sterilization
• Materials: Selected and treated materials for UV-C operation
• Electrode design: Electrodes isolated from plasma discharge to maximize life
• Availability: Standard linear sizes; customizable geometries and form factors
• Lifetime: Long operational lifetimes, typically thousands of hours
• Typical applications: Microbial disinfection
• Datasheet references: EL01-60, EL01-150, EL01-E
