UV curing system VeriCure™

UV LEDinkjethigh-performance

Overview

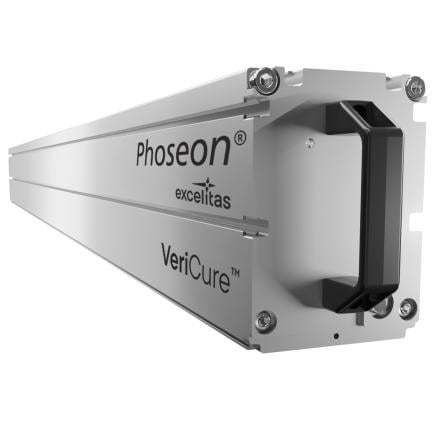

The Phoseon VeriCure water-cooled UV LED curing system is a wide-format UV source engineered for industrial coatings and high-speed printing. The system integrates a patented Semiconductor Light Matrix (SLM) array and an efficient water-cooling architecture to deliver high optical power, consistent dose, and industry-grade uniformity across large irradiation windows. Available wavelengths: 365 nm, 395 nm, 405 nm (385 nm on request). The unit supports flexible integration and standard industrial communication protocols.

Platform and performance tiers
The VeriCure platform offers two performance tiers to match throughput and cost requirements: the Standard tier provides 95 W per 25 mm with 75 mm independently controllable segments; the Lite tier provides 48 W per 25 mm with 150 mm independently controllable segments. Both tiers are designed for industrial coating and printing lines where dose, uniformity and uptime are critical.

Features

• High dose capability for increased line speed and improved cure-through on thick or pigmented coatings.
• Optimized uniformity via SLM control to reduce variability across wide substrates.
• Water-cooled design for stable optical output and extended LED life under continuous operation.
• Modular lengths and segment control for zone-specific dosing and integration flexibility.

Applications

• Wood coatings and parquet oils
• Inkjet inks for wood decoration and large-format printing
• Metal coatings and functional coatings
• Pressure-sensitive adhesive (PSA) curing and release liners
• Decorative laminates and barrier coatings

Technical specifications

• Models: 750; 900; 1050; 1200; 1350
• Length (mm): 750 → 1024; 900 → 1174; 1050 → 1324; 1200 → 1474; 1350 → 1624
• Emission window (mm): 750 × 20; 900 × 20; 1050 × 20; 1200 × 20; 1350 × 20
• Amperage / Input power (±10%): 750 → Standard: 60 A / 7.2 kW; Lite: 30 A / 3.575 kW; 900 → Standard: 72 A / 8.6 kW; Lite: 36 A / 4.30 kW; 1050 → Standard: 84 A / 10.1 kW; Lite: 42 A / 5.00 kW; 1200 → Standard: 96 A / 11.5 kW; Lite: 48 A / 5.70 kW; 1350 → Standard: 109 A / 13.1 kW; Lite: 54 A / 6.40 kW
• Typical dose: Standard: 500 mJ/cm2 (@50 mm working distance, 50 m/min); Lite: 250 mJ/cm2 (@50 mm, 50 m/min) — across all models
• Peak irradiance: Standard: 20 W/cm2 (@window) ; 6 W/cm2 (@30 mm WD). Lite: 10 W/cm2 (@window) ; 3 W/cm2 (@30 mm WD) — across all models
• Wavelengths (nm): 365, 395, 405 (385 on request)
• Expected LED lifetime: >60,000 h at L90
• Maximum operating temperature: 40°C
• Standard cross section (mm): with secondary glass 147 W × 155 H (without: 104 W × 147 H)
• Input voltage (±5 VDC): 120 VDC
