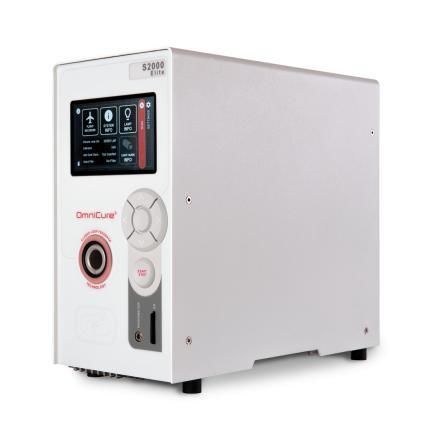

UV curing system OmniCure® S2000 Elite

industrialbench-topin-line

Overview
OmniCure S2000 Elite is a lamp-based UV spot curing system for demanding manufacturing and laboratory applications. It provides repeatable irradiance control, precise dose management and integration features for automated production and R&D environments.

Key Capabilities and Technologies
The S2000 Elite integrates technologies to ensure consistent, high-quality curing:

• Patented Closed-Loop Feedback (CLF) monitors lamp output and maintains irradiance within ±5% of setpoint.
• Intelli-Lamp 2.0 optimizes lamp efficiency and extends lamp lifetime.
• High-speed mechanical shutter, 30 ms response, enables exposures down to 100 ms with precise dose control.
• StepCure 2.0 software with PLC control for multi-phase cure profiles and up to seven programmable PLC outputs.
• Web UI for remote control, profile management and system monitoring of single or multiple units.
• 4.3 in LCD touchscreen for local operation.
• Intelli-Tap NFC keycards for role-based access (Admin, Supervisor).
• SD card and USB for data transfer, logs and software updates.
• User-reconfigurable, field-replaceable lamps and optical filters with automatic component detection.
• Backward compatibility with S2000 XLA accessories and optional External PLC Adapter for legacy PLC ports.

Calibration & Radiometry
Calibration with the OmniCure R2000 radiometer allows exposures to be set in absolute peak irradiance (W/cm2) or optical power (W). On-screen indicators, a light ring and audible alarm signal when the lamp can no longer reach the set irradiance to support predictable maintenance.

Hg Lamp Environmental Note
Hg lamp contains mercury. Dispose and handle according to local regulations and applicable laws.

Intelli-Tap NFC Communication
Part Number | Description
019-00406R | S2000 Elite Intelli-Tap Supervisor NFC card
019-00407R | S2000 Elite Intelli-Tap Admin NFC card

Field Replaceable Lamp and Filter Options
Part Number | Description
012-68000R | S2000 Elite Lamp Module
012-69000R | S2000 Elite Lamp Module - Surface Cure
019-00387R | S2000 Elite Filter 400-500 nm
019-00388R | S2000 Elite Filter 365 nm
019-00389R | S2000 Elite Filter 320-390 nm
019-00390R | S2000 Elite Filter 250-450 nm
019-00391R | S2000 Elite Filter 320-500 nm
019-00392R | S2000 Elite Blank Filter

Benefits & Applications
Designed for automated and semi-automated production lines and laboratory/R&D use where precise, repeatable UV curing is required. Typical benefits include improved process repeatability, reduced calibration effort, extended lamp life monitoring, simplified PLC integration and remote management for Industry 4.0 workflows.

Features (summary)

• Closed-Loop Feedback (CLF) for real-time UV output regulation.
• Intelli-Lamp 2.0 for lamp optimization and extended lifetime (2000 h guaranteed; 3500–4000 h typical).
• Backward compatibility with S2000 XLA systems and accessories.
• 30 ms precision shutter for accurate dosing.
• 4.3 in LCD touchscreen and Web UI for local and remote operation.
• StepCure 2.0 for multi-phase cure profiles and PLC outputs (up to 7 channels).
• SD card and USB support for logs, profiles and updates.
• NFC keycard support for Admin and Supervisor roles.
• User-reconfigurable filters and lamp modules with automatic detection.
• Cleanroom-ready duct attachment points.

Technical specifications

• Electrical: Input voltage — 100-240 VAC, 50/60 Hz
• Electrical: Current — 3.5 A max at 120 VAC; 2.0 A max at 240 VAC
• Optical: Light source — High pressure 200 W mercury vapor short arc
• Lamp lifetime — 2000 hours (guaranteed); 3500–4000 hours typical
• Optical performance — Up to 30 W/cm2 (peak irradiance)
• Physical size (H x W x D) — 268 x 139 x 289 mm
• Size with External PLC Adapter (H x W x D) — 268 x 139 x 358 mm
• Weight — 5 kg
• Operating temperature — 15°C to 40°C
• Warranty — System: 1 year; Lamp: 2000 hours
