UV curing system FireJet™ ONE

UV LEDfor coatinginkjet

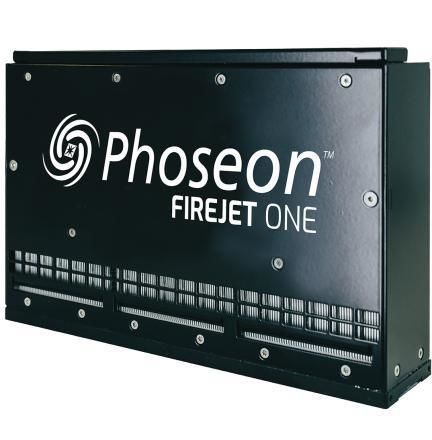

Overview The Phoseon FireJet ONE is a 20 W/cm² UV LED large-area curing system for curing inks, coatings and adhesives where high irradiance in a compact footprint is required. Modules are available with emitting windows from 75×20 mm to 375×20 mm and can be scaled by aligning units side-by-side and daisy-chaining for wider coverage.

Integration and Control Unique optics deliver consistent surface uniformity. The self-contained unit supports straightforward mechanical integration and offers PLC I/O for instant on/off and intensity control, plus digital interfaces for advanced monitoring. Optional Modbus TCP enables high-speed data exchange and remote access.

Features

• Peak irradiance: 20 W/cm² at 385, 395, 405 nm
• Peak irradiance: 12 W/cm² at 365 nm

Documentation (available)

• Phoseon FireJet ONE Datasheet
• Phoseon FireJet ONE User Manual
• Modbus TCP Communication Protocols Technical Note
• TargetCure Technology Brochure
• WhisperCure Technology Brochure

Applications

• Digital inkjet printing
• Screen printing
• Flexographic printing
• Coatings
• Adhesives

Technical specifications

• Wavelengths: 365, 385, 395, 405 nm
• Peak irradiance: 20 W/cm² (385, 395, 405 nm); 12 W/cm² (365 nm)
• Emitting window (mm): 75×20, 150×20, 225×20, 300×20, 375×20
• Maximum fan capacity: 50, 100, 150, 200, 250 CFM
• 48V power input (max): 672W (14A), 1344W (28A), 2016W (42A), 2688W (56A), 3360W (70A)
• Typical UV emitting power: 205W, 412W, 620W, 825W, 1018W
• DC connector type: 2W2, 2W2, 5W5, 5W5, 8W8
