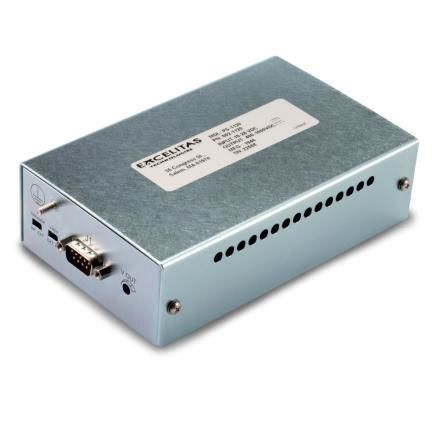

DC power supply PS-1100

rack-mountregulatedstabilized

Product Overview
The Excelitas PS-1100 Series power supplies provide regulated DC power for operating FX-1100 Series flashlamps and FYD-1100 Lite-Pac Trigger Modules. They are intended for DC input operation with low ripple and stable output, suitable for controlled discharge applications.

Details
Each PS-1100 unit contains the circuits required to operate a Lite-Pac Trigger Module. Power supply selection depends on discharge energy and lamp requirements; Excelitas offers several standard units covering the FX-1100 and FYD-1100 families. Units feature regulated output and minimal ripple to ensure repeatable pulse performance.

Technical specifications

• Output voltage: 600 ± 2% VDC; 450–600 ± 2% VDC; 400–1000 ± 2% VDC
• Power output: up to 10 W or up to 20 W depending on model
• DC input operation with low output ripple
• Built-in trigger circuits for Lite-Pac FYD-1100 modules
• Multiple capacitance options available to match discharge energy
