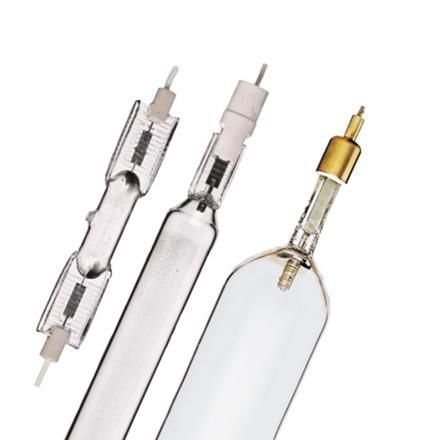

Tubular bulb

UVcompacthigh-power

Product overview Noblelight UV medium-pressure lamps produce a broad line-spectrum across the ultraviolet and visible ranges (200 nm to 600 nm), delivering a high power density of approximately 100 W/cm². They are suitable for UVC disinfection, oxidation, curing and various photochemical processes. Different additives can be used to customise spectral output and lamp characteristics.

Types of UVC medium-pressure lamps

• Standard UV medium-pressure lamps: high UVC radiation output for effective disinfection.
• High-performance UV medium-pressure lamps: reduced size with increased UVC output for enhanced disinfection and oxidation effects.

Features

• Compact design enables installation in high-throughput industrial applications.
• Lower initial investment due to higher power density.
• Fewer lamps required for equivalent irradiance.
• Improved stability from rounded seal at the lamp base.
• Optimised spectra for photochemical applications using additional metal halides.

Applications

• Water and liquid disinfection.
• Photochemistry and laboratory photoprocesses.
• Decomposition of pollutants, activated wet oxidation (AOP).
• Drying and curing of coatings and inks.

Technical specification table Efficient spectral range | Standard Lamps: 200 - 280 nm | High Performance Lamps: 200 - 280 nm
Specific electrical power | 80 - 120 W/cm | 120 - 250 W/cm
Specific UVC radiant flux | 12 - 18 W/cm | 18 - 40 W/cm
Power range | 0.4 - 10 kW | 1 - 60 kW
Dimensions / lamp length | 4 - 150 cm | 7 - 200 cm
Lamp diameter | 15 - 28 mm | 19 - 55 mm
Surface temperature | 600 - 900°C | 800 - 900°C
Typical service life | 1,500 - 8,000 h | 1,500 - 8,000 h

Characteristics / technical specifications

• Spectral range: 200 - 600 nm (broad line-spectrum across UV and visible).
• Typical high power density: approximately 100 W/cm² (standard models).
• Standard band: specific electrical power 80–120 W/cm; UVC radiant flux 12–18 W/cm; lamp power 0.4–10 kW; diameter 15–28 mm; arc length 4–150 cm.
• High-performance band: specific electrical power 120–250 W/cm; UVC radiant flux 18–40 W/cm; lamp power 1–60 kW; diameter 19–55 mm; arc length 7–200 cm.
• Typical surface temperatures: 600–900°C (standard), up to 900°C (high-performance).
• Typical service life: 1,500–8,000 hours.
• Lamps contain mercury; dispose of and recycle in accordance with local, state or national regulations.
