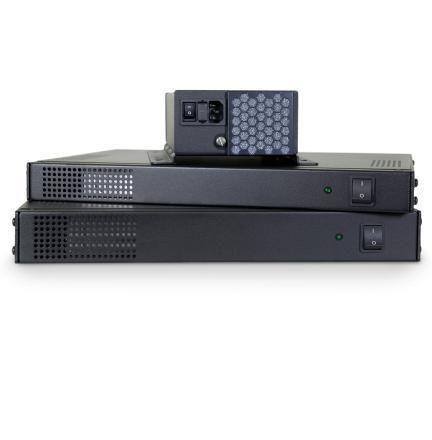

Power LED driver OmniCure® SC series

constant voltagehigh-power

Description
OmniCure® SC Series power supply controllers are engineered for use with OmniCure AC Series UV LED curing systems. The series provides a range of controller options to match application scale and installation constraints. The compact SC0650 targets single LED-head installations and minimal integration effort, while the SC0750, SC1000, SC2000 and SC3000 offer high-density, multi-output configurations for large-area curing and rack-mounted industrial equipment. All SC models share a common DC connector interface and voltage specification to simplify system compatibility and inventory management.

Features

• Single-head solution: Simple and cost-effective for small-area applications
• Flexible installation options: Can be installed in any orientation with minimal additional hardware
• Standard connection across OmniCure AC Series: Uniform DC interface to reduce spare-part SKUs
• Compact and lightweight: Adaptable to constrained integration environments
• Integrated, user-serviceable air filter: Enables deployment in dust-prone environments without additional filtration

Specifications
Models: SC0650, SC0750, SC1000, SC2000, SC3000
Operating Temperature Range: 10–40 ºC (all models)
Dimensions (L x W x H): SC0650: 293 x 190 x 83 mm; SC0750 / SC1000 / SC2000: 341 x 445 x 44 mm; SC3000: 341 x 445 x 67 mm
Weight: SC0650: 2.0 kg (4.5 lbs); SC0750 / SC1000 / SC2000: 3.9 kg (8.6 lbs); SC3000: 6.5 kg (14.3 lbs)
Input Voltage: SC0650 / SC0750 / SC1000: 100–240 VAC 50/60 Hz; SC2000 / SC3000: 200–240 VAC 50/60 Hz
Max. AC Input Current: SC0650: 7.5–3.1 A; SC0750: 9–4.3 A; SC1000: 12–6.5 A; SC2000: 13–9.6 A; SC3000: 15.6–13 A
Protection Rating: SC0650: 8 A; SC0750: 10 A; SC1000: 13 A; SC2000 / SC3000: 16 A
Fuse: Circuit breaker (as listed per model)
Max. DC Power: SC0650: 650 W; SC0750: 750 W; SC1000: 1000 W; SC2000: 2000 W; SC3000: 2800 W
Operating Voltage: 48 V DC ± 1 V (all models)
Max. DC Current: SC0650: 13.5 A; SC0750: 15.7 A; SC1000: 21 A; SC2000: 41.5 A; SC3000: 58.3 A
Number of DC Output Connectors: SC0650: 1; SC0750 / SC1000 / SC2000: 2; SC3000: 4
Certifications: CE, RoHS, WEEE

Characteristics / Technical specifications

• Series: OmniCure SC Series designed for OmniCure AC Series UV LED curing systems
• Small form factor option (SC0650) for single LED-head applications
• High-density, scalable multi-output controllers (SC0750, SC1000, SC2000, SC3000) for large-area curing
• Common DC connector interface and voltage across AC Series compatibility
• Integrated, user-serviceable air filter for dust-prone environments
• Wide operating temperature range: 10–40 ºC
• Certifications: CE, RoHS, WEEE
