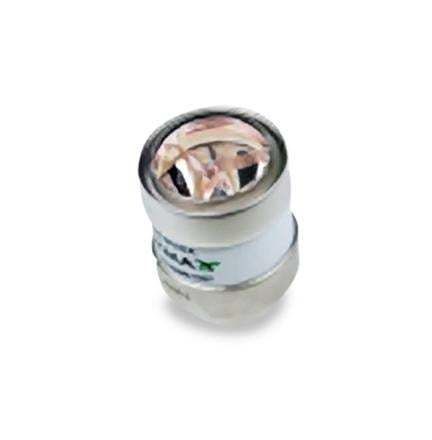

Spot bulb PE175BFA

xenoninfraredhigh-power

Product Overview
The 175 Watt Cermax® Xenon lamp PE175BFA provides broad-spectrum illumination for optical systems that require lower intensity than the 300 W variant. Designed for integration into scientific and industrial lighting assemblies, this parabolic-reflector lamp with a ceramic body supports spectral tuning via catalog filters to meet specific application needs.

Performance Details
Nominal output is 2,200 lumens at a nominal power of 175 Watts. Operating power range is 150–200 W. Color temperature is approximately 5,900 K. Typical lamp life is 1,000 hours. Radiant output and spectral contributions include 25 W radiant output, 1.2 W UV (<390 nm) and 14 W IR (>770 nm). Electrical characteristics require a DC supply: nominal voltage 12.5 V (range 11–14 V) and nominal current 14 A (range 12–16 A). Ignition voltage is system dependent (23–35 kV). Maximum allowable temperature is 150 °C.

Specifications

• Reflector Type: Parabolic
• Body Type: Ceramic
• Total Visible Output: 2200 Lumens
• Power - Nominal: 175 Watts
• Power - Range: 150-200 Watts
• Current - Nominal: 14 Amps (DC)
• Current - Range: 12-16 Amps (DC)
• Ignition Voltage: 23-35 kilovolts (system dependent)
• Operating Voltage - Nominal: 12.5 Volts (DC)
• Operating Voltage - Range: 11-14 Volts (DC)
• Lifetime: 1000 hours typical
• Temperature: 150 °C (maximum)
• Radiant Output: 25 Watts
• UV Output (<390 nm): 1.2 Watts
• IR Output (>770 nm): 14 Watts

Applications and Handling

• Intended for optical instruments: microscopy illumination, projection systems, machine vision and inspection lighting.
• Requires compatible DC power supply/ballast and appropriate high-voltage ignition circuit.
• Handle according to equipment manufacturer instructions; avoid contamination of the ceramic body and follow safe high-voltage practices.
