LED light source KeyLight™

ultravioletUVtunable

Product Overview

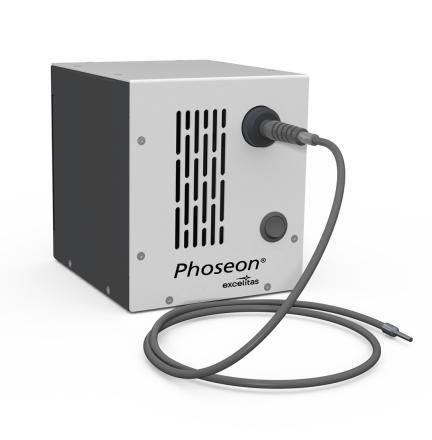

The Phoseon KeyLight OEM light source is a compact, modular UV-visible LED illumination module designed for integration into microscopy and fluorescence imaging instruments. It delivers precise, stable UV and visible output with low noise, low heat generation and long lifetime, enabling reproducible laboratory imaging and OEM system integration.

Key Details
KeyLight supports 4 to 7 independently switchable channels across UV, visible and near-infrared wavelengths. Available models include KL400, KL500, KL600 and KL700, with configurable wavelengths and optical outputs to match dyes and imaging techniques used in molecular and cell biology.

Features

• Small form factor for easy OEM integration
• Multi-channel LED architecture (4–7 channels)
• Configurable wavelengths: 377, 425, 450, 475, 520, 545, 555, 560, 630, 730, 740 nm (others on request)
• Multiple optical outputs: close-coupled microscope adapter, 3 mm liquid light guide (LLG), 1.5 mm core fiber with SMA
• Electronic control via USB, remote or onboard intensity controls
• Energy-efficient, low maintenance and long operational life
• Software support for intensity and sequencing

Specifications

• Models: KL400, KL500, KL600, KL700
• Channels: 4 to 7 depending on model
• Supported dyes/techniques: DAPI, POPO, Aqua, FISH, Eosin, CY3, Texas Red, CY5, etc.
• Light delivery: close-coupled microscope, liquid light guide or fiber outputs
• Control: USB computer control (on/off and graduated intensity); Phoseon remote and onboard intensity options
• Power: external 12 Vdc, 8.5 A
• Dimensions: from 77 x 125 x 160 mm to ~220 x 200 x 140 mm depending on model
• Acoustic: <60 dBA @ 1 m
• Weight: from 3.75 lbs up to <15 lbs depending on model
• Operating environment: 15°C to 30°C; <80% non-condensing humidity; <3,000 m altitude
• Certifications: RoHS, REACH, CE
• Warranty: 12 months

Applications

• Microscopy
• Fluorescence microscopy

Technical specifications

• Available wavelengths (nm): 377, 425, 450, 475, 520, 545, 555, 560, 630, 730, 740 (others on request)
• Optical outputs: close-coupled adapter, 3 mm LLG, 1.5 mm fiber with SMA
• Control interfaces: USB, Phoseon remote, onboard controls
