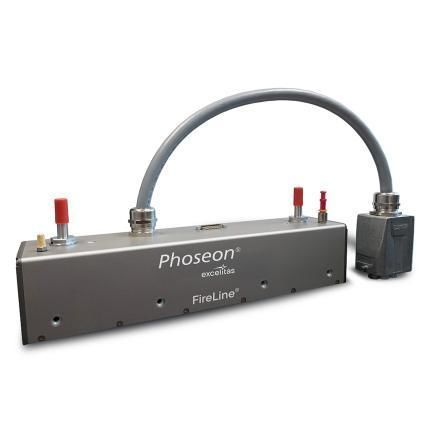

UV curing system FireLine™ FL400-i

UV LEDindustrialfor coating

Overview
The Phoseon FireLine™ FL400-i Industrial UV LED area curing system is engineered for demanding industrial coating and adhesive curing applications. Its ruggedized enclosure with IP66 ingress protection enables reliable operation in harsh production environments. The system delivers high peak irradiance and exceptional optical uniformity for consistent curing across the emitting window.

Design and Environmental Protection
Multiple connection options include straight or barbed water fittings and CDA (clean, dry air) ports to reduce condensation risk in high-temperature processes. Enhanced window sealing and an optional secondary glass accessory protect against heat, liquids and contamination. Optional Modbus TCP enables high-speed data exchange and remote access for process integration and monitoring.

Features

• Peak irradiance: 24 W/cm² at 385, 395, 405 nm
• Rugged enclosure with enhanced window sealing for protection against heat, liquids and dirt
• Optional secondary glass accessory for additional protection
• Exceptional optical uniformity for consistent, high-quality curing
• Digital or analog control options for flexible integration
• IP66 ingress rating suitable for industrial production environments
• Optional Modbus TCP communication protocol for remote access and data exchange

Applications

• Industrial coatings
• Adhesive curing

Technical specifications

• Wavelengths: 385, 395, 405 nm
• Peak irradiance: 24 W/cm²
• Emitting window (mm): 300 x 20
• 48V power in (max): 3850 W
• Chiller/cooler capacity: 3157 W
• Chiller/cooler flow rate: 10 LPM
• Pressure drop (typical): 0.62 Bar
• DC power connector: 5W5
