LED light source

ultravioletvisiblenear-infrared

Overview
THIS PRODUCT IS DISCONTINUED. It has been replaced with the X-Cite XYLIS II. Technical support for this product will continue to be available.

Summary

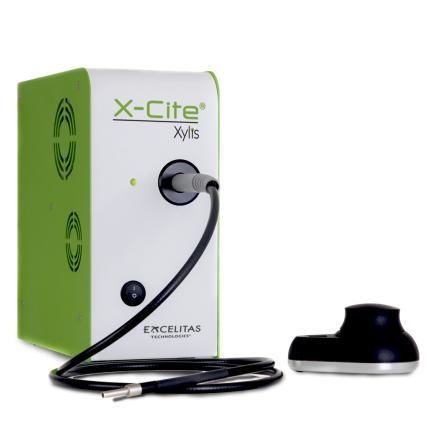

Excelitas offers the X-Cite XYLIS as a laboratory-grade, broad-spectrum LED illumination solution for fluorescence microscopy. Designed for fast switching and multi-peak excitation, the unit supports research and clinical imaging workflows requiring repeatable, TTL- or USB-controlled light delivery. The system provides selectable LED peaks, rapid TTL/USB response times and multiple control interfaces for integration with microscopes and imaging systems.

Technical specifications

• Product family: X-Cite XYLIS broad-spectrum LED illumination system
• Available models: XT720S, XT720L
• Wavelength range: 360–770 nm (XT720S) / 380–770 nm (XT720L)
• LED peaks (nm): XT720S: 365, 430, 475, 545, 635, 735; XT720L: 385, 430, 475, 545, 635, 735
• Input power supply: Universal input 100–240 VAC, 50/60 Hz
• Current: 3.9–1.6 A
• LED ON/OFF response times: 100 μs (TTL) / 1 ms (USB)
• Control options: speedDIAL; ON/OFF TTL compatible; RS-232 commands (SDK available); USB; optional foot pedal
• I/O connections: BNC input; USB (Type-B); 3.5 mm stereo plug
• Dimensions (W × H × D): 120 × 260 × 260 mm (4.7" × 10.3" × 10.3")
• Weight: 6.3 kg (13.9 lbs)
• Certifications: CE, RoHS
• Warranty: LEDs – 25,000 hours or 3 years; all other X-Cite XYLIS components – 1 year (parts and labor, excluding LLG)
• Patents: technology protected by US#9,239,133

Documentation

• Software Supporting X-Cite Products (PDF)
• Hardware Trigger (TTL) Control with PCO Scientific Cameras (PDF)
• Qualified Microscope List (PDF)
• Why Switch From Lamp to LED (PDF)
• X-Cite Safety Precautions (PDF)
• X-Cite Warranty Details (PDF)
• X-Cite XYLIS Brochure (PDF)
• X-Cite XYLIS Control Options (PDF)
• X-Cite XYLIS EU Declaration (PDF)
• X-Cite XYLIS Filter Recommendations (PDF)
• X-Cite XYLIS Fluorophores (PDF)
• X-Cite XYLIS Quick Start Guide (PDF)
• X-Cite XYLIS UKCA Declaration (PDF)
• X-Cite XYLIS User Guide (PDF)
• Windows 11 Compatibility (PDF)

Support & warranty
Although discontinued, the X-Cite XYLIS remains supported: technical assistance and firmware/SDK resources are available. For new deployments consider the X-Cite XYLIS II as the current replacement.
