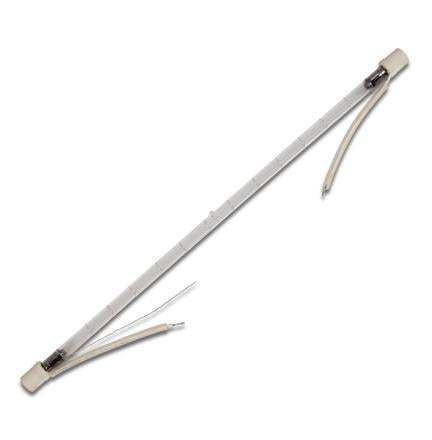

UV bulb DG 8901-1

Overview
Xenon flashlamps emit a broad spectrum from ultraviolet to infrared similar to sunlight and are used for solar simulation in applications such as solar cell and module testing, accelerated weathering and material testing. Excelitas flashlamps are engineered to meet spectral and optical requirements for solar simulation and are available in linear and ring geometries. Linear units are noted for stable, uniform output and can be operated in pulsed or continuous-wave (CW) modes.

Applications

• Photovoltaic cell and module performance testing
• Accelerated weathering and materials ageing tests
• Laboratory solar irradiation studies and qualification
• Environmental simulation requiring broad-spectrum light source

Key features

• Broad spectral output covering UV to IR for realistic sun simulation
• Available shapes: linear and ring; other shapes on request
• Suitable for water or air cooling
• Operable in pulsed or CW mode; supports long-pulse operation
• Customized designs and assemblies available for integration

Representative models and specifications

• DG 8901-1: linear, 750 W; Anode Voltage (min / nom / max) 360 / 554 / 550 V; Arc 158 mm; Glass body length –; Overall length 238 mm; Envelope diameter 10 mm; Ring diameter –; Rep rate 2–14 Hz; Trigger coil ZS 1052; Trigger capacitor 0.22 µF; Primary trigger voltage 250 V
• EG 9902-1: linear, 1500 W; Anode Voltage (min / nom / max) 480 / 350 / 360 V; Arc 312 mm; Glass body length –; Overall length 392 mm; Envelope diameter 10 mm; Ring diameter –; Rep rate 2–14 Hz; Trigger coil ZS 1052; Trigger capacitor 0.22 µF; Primary trigger voltage 250 V
• FG 9902-1: linear, 2500 W; Anode Voltage (min / nom / max) 600 / 750 / 800 V; Arc 457 mm; Glass body length –; Overall length 537 mm; Envelope diameter 10 mm; Ring diameter –; Rep rate 2–14 Hz; Trigger coil ZS 1052; Trigger capacitor 0.22 µF; Primary trigger voltage 200 V
• GG 9902-1: linear, 3000 W; Anode Voltage (min / nom / max) 600 / 750 / 800 V; Arc 615 mm; Glass body length –; Overall length 695 mm; Envelope diameter 10 mm; Ring diameter –; Rep rate 2–14 Hz; Trigger coil ZS 1052; Trigger capacitor 0.22 µF; Primary trigger voltage 100 V

Cooling and operation

• Compatible with water or air cooling depending on power and installation
• Operation modes: pulsed or continuous-wave (CW); long-pulse supported
• Flash stability and uniformity optimized for solar simulation applications

Customization & ordering

• Customized geometries, arc lengths and assemblies available to match system optical and spectral requirements
• Specify desired shape, power, arc length, cooling method and recommended trigger components when ordering
• Contact Excelitas technical representative for integration support and detailed electrical requirements
