Distribution electrical enclosure Noblelight® MPE series

controlswitchingequipped

Overview
The Fusion UV power supply towers and Modular Power Supply Enclosure (MPE) provide centralized housing and control for multiple microwave‑powered UV curing system power supplies. They create a single electrical connection point and a controlled environment to simplify installation and protect electronics in industrial production lines.

Power Supply Towers
Available in wide and narrow formats, the towers accommodate up to five power supplies in various combinations. They support models such as LightHammer® 10 Mark III, LightHammer H6 Mark II, P600M, P300 and Semray CPS3. Optional modules include a Power Distribution Box for single‑switch control and an emergency stop (E‑Stop) hard stop circuit for rapid irradiator shutdown.

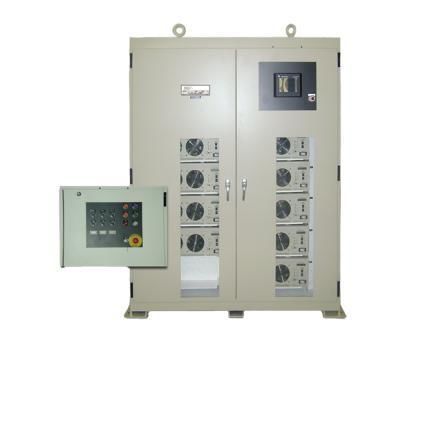

Modular Power Supply Enclosure (MPE)
The MPE cabinet centralizes multiple microwave‑powered UV curing systems with front access and options for remote or local operation. Depending on the selected power supply models, cabinets can house between four and ten systems. Options include PLC and touchscreen control for integration with production control systems. Cabinets deliver clean, filtered air to maintain optimal cooling and extend power supply life in demanding environments.

Features

• Simplified multi‑lamp system installation with a single power entry point
• Centralized control improves process consistency and product quality
• Controlled airflow and filtration to enhance power supply reliability and service life
• Filtered directional airflow and cooling suitable for dusty production areas
• Optional PLC and touchscreen or remote/local switching for flexible control
• Configurable grouped or independent operation of power supplies with coordinated emergency controls

Specifications

• Capacity: towers up to five power supplies; MPE configurations support 4–10 power supplies (model‑dependent)
• Electrical input: single‑point power drop options 200, 208, 230–240, 380, 415, 440, 460–480 VAC; 50 or 60 Hz (availability depends on power supply type)
• Emergency stop: E‑Stop provides a hard emergency stop circuit to quickly shut down irradiators
• Power distribution: optional Power Distribution Box for centralized switching and protection
• Control options: front access, remote access, optional PLC and touchscreen, remote/local switching
• Cooling: clean, filtered directional airflow for each power supply

Applications

• Bottom rim coating of beverage cans
• Optical fiber coating
• Converting and wide‑web coating lines
• Pipe coating and automotive component curing

Technical specifications

• Product family: Fusion UV Power Supply Towers and Cabinets (Modular Power Supply Enclosure, MPE)
• Supported power supply models: LightHammer® 10 Mark III, LightHammer H6 Mark II, P600M, P300, Semray CPS3, F300S, F600S, LH6 Mark II, LH10 Mark III (varies by configuration)
• Capacity details: MPE‑5 supports up to 5 power supplies; MPE‑10 supports up to 10; towers accommodate up to 5 units depending on configuration
• Tower configurations: Wide Tower (higher capacity, mixed power levels) and Narrow Tower (space‑restricted)
• Safety & monitoring: integrated E‑Stop, lamp standby mode, high/reduced power selection, interlocks for external faults or RF anomalies, elapsed time meters for maintenance
• Environmental protection: clean, filtered air and directional airflow to protect electronics in harsh production environments
