UV curing system AC9225-F

UV LEDair-cooled

Overview

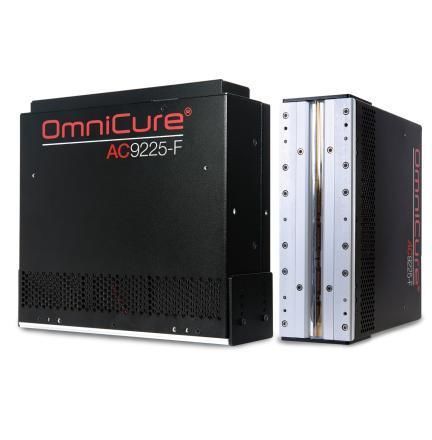

The OmniCure AC9225-F Series are UV LED fiber curing systems engineered to deliver high irradiance to fiber components while simplifying integration and maintenance. Featuring an optical design optimized for fiber delivery and a replaceable outer window, the AC9225-F offers air-cooled operation and scalable output for demanding production lines. With up to 80 W/cm2 irradiance on the fiber in a standard face-to-face configuration, the system supports increased process speeds without complex integration changes.

Additional information
Compared with traditional arc lamp systems, OmniCure AC9225-F UV LED fiber curing systems reduce electrical power consumption by up to 60%, lowering operating costs. LEDs provide over 40,000 hours (L70) of life expectancy and require no routine replacement parts, further reducing maintenance. Two AC9225F-395 model variants are available to match system control and communication requirements.

Specifications (table)
AC9225-F
Peak Wavelengths: 395 nm +/- 5 nm
Active Optical Area: 225 x 15 mm
Typical Power Consumption*: 900 W
Typical Peak Irradiance (W/cm2): (not specified in table)
Working Distance / Typical Peak Irradiance:
10 mm — 21.8
13 mm — 21.4
15 mm — 20.7
18 mm — 19.7
Longitudinal Uniformity*: Better than +/- 10%
Operating Voltage: 48 V DC +/- 2 V
Dimensions (L x W x H): 235 x 80 x 220 mm
Weight: 2.7 kg
Cooling: Air
Life Expectancy (L70): >40,000 hours
Automation: Integrated PLC controls
LED Warranty: 3 years or 20,000 service hours
*At 100% intensity setting

Technical specifications

• Model / Series: AC9225-F Series
• Peak wavelength: 395 nm ±5 nm
• Active optical area: 225 x 15 mm
• Typical power consumption: 900 W (at 100% intensity)
• Working distances and corresponding irradiance: 10 mm → 21.8 W/cm2; 13 mm → 21.4 W/cm2; 15 mm → 20.7 W/cm2; 18 mm → 19.7 W/cm2
• Longitudinal uniformity: Better than ±10%
• Operating voltage: 48 V DC ±2 V
• Dimensions: 235 x 80 x 220 mm
• Weight: 2.7 kg
• Cooling: Air (air-cooled)
• Life expectancy (L70): >40,000 hours
• Automation: Integrated PLC controls
• LED warranty: 3 years or 20,000 service hours
• Designed for fiber curing; replaceable outer window for simplified maintenance
• Energy efficiency: up to 60% lower electrical power consumption vs. arc lamp systems
