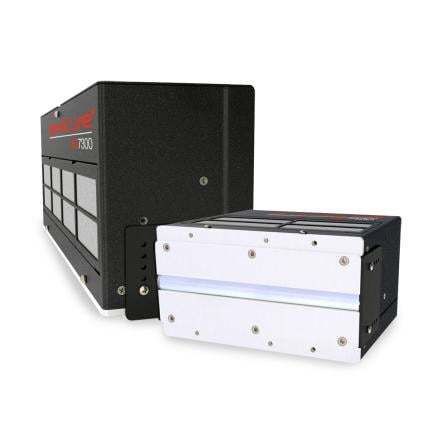

UV LED curing system OmniCure AC7 series®

for coatingbench-topair-cooled

Product overview
The OmniCure® AC7 Series are air‑cooled UV LED curing systems engineered for large‑area, high‑speed curing. Equipped with high‑output LEDs and custom front‑end optics, the AC7150 and AC7300 deliver peak irradiance above 5 W/cm2 and maintain consistent longitudinal uniformity across nominal 150 mm (6") to 300 mm (12") curing widths. The air‑cooled design facilitates easy integration into production lines and workstations.

Applications
Systems can be adjoined in any AC7150/AC7300 combination to extend the addressable curing area without compromising optical performance. Suited for adhesive and coating processes including display panels, touch panels, thin films and fiber treatments in inline and bench installations.

Features

• Peak irradiance above 5 W/cm2 for faster cure cycles
• Custom front‑end optics for higher peak irradiance at longer working distances
• Adjoinable heads with better than ±10% uniformity between units at working distances ≥ 20 mm
• Available in 365 nm ±5 nm and 395 nm ±5 nm for broad adhesive/coat compatibility
• Air‑cooled: no external chillers, venting or ozone extraction required
• I/O port and integrated PLC controls for remote operation and automation
• Highly efficient LED modules with typical lifetime of more than 20,000 hours
• Compact footprint and low acoustic noise (less than 65 dBA under adapting load)
• Model power and consumption: AC7150 optical 40 W / 80 W, 330 W consumption; AC7300 optical 80 W / 160 W, 650 W consumption

Technical specifications (selected)

• Models: AC7150 | AC7300
• LED peak wavelengths: 365 nm ± 5 nm; 395 nm ± 5 nm
• Active optical area: AC7150 — 152 x 15 mm; AC7300 — 305 x 15 mm
• Typical peak irradiance examples (W/cm2): WD 1 mm — 2.8 / 5.2 (365 / 395 nm); WD 20 mm — 2.1 / 3.6; WD 50 mm — 1.0 / 2.0
• Optical power (100% intensity): AC7150 — 40 W / 80 W; AC7300 — 80 W / 160 W
• Power consumption (100% intensity): AC7150 — 330 W; AC7300 — 650 W
• Longitudinal uniformity: ±10%; uniformity between adjoined heads: better than ±10% at ≥ 20 mm WD
• Operating voltage: 48 V DC ± 2 V
• Dimensions (L x W x H): AC7150 — 152 x 100 x 148 mm; AC7300 — 305 x 100 x 148 mm
• Weight: AC7150 — 1.8 kg; AC7300 — 3.2 kg
• Cooling: Air‑cooled
• Acoustic noise: less than 65 dBA (load adapting)
• Life expectancy: more than 20,000 hours
• Automation: Integrated PLC controls for UV intensity and system alarms
• Warranty: 1 year; 10,000 service hours for light engine
