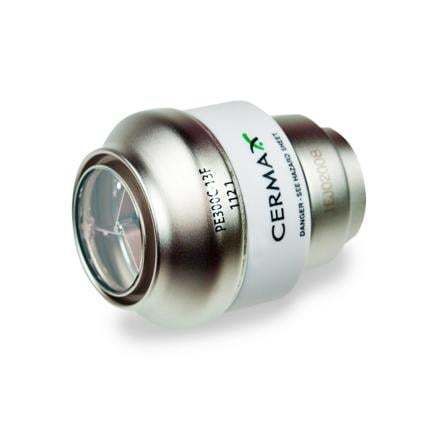

Spot bulb PE300C-10Fxenonhigh-power12VDC
Add to favorites
Compare this product
Characteristics
- Shape
- spot
- Illumination technology
- xenon
- Other characteristics
- high-power
- Voltage level
- 12VDC
Description
Overview
The integrated elliptical reflector in this 300 Watt Cermax® Xenon lamp creates a converging beam eliminating the need for secondary focusing optics. The unique oversized reflector improves light collection and maximizes lamp efficiency. This lamp is well suited for applications requiring a small optical aperture.
Performance
The PE300C-10F delivers high-intensity, focused illumination: 7475 lumens nominal, with an operating power range of 200-300 W. Color temperature is approximately 5900 K and typical lamp life is 1,000 hours.
Specifications
The integrated elliptical reflector in this 300 Watt Cermax® Xenon lamp creates a converging beam eliminating the need for secondary focusing optics. The unique oversized reflector improves light collection and maximizes lamp efficiency. This lamp is well suited for applications requiring a small optical aperture.
Performance
The PE300C-10F delivers high-intensity, focused illumination: 7475 lumens nominal, with an operating power range of 200-300 W. Color temperature is approximately 5900 K and typical lamp life is 1,000 hours.
Specifications
- Reflector type: Elliptical, f/1.0
- Body type: Ceramic
- Total visible output: 7475 Lumens
- Power - nominal: 300 Watts
- Power - range: 200-300 Watts
- Current - nominal: 21 Amps (DC)
- Current - range: 13-26.5 Amps (DC)
- Ignition voltage: 23 kilovolts (recommended minimum, system dependent)
- Operating voltage - nominal: 12 Volts (DC)
- Operating voltage - range: 11.5-15 Volts (DC)
- Lifetime: 1000 hours typical
- Temperature: 150 °C (maximum)
- Radiant output: 75 Watts
- UV output (<390 nm): 3.8 Watts
- IR output (>770 nm): 37 Watts
