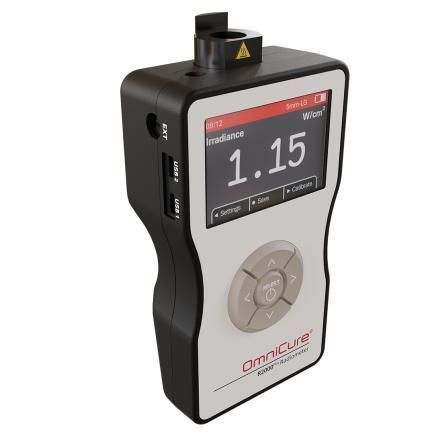

UV radiometer OmniCure® R2000Plus

Overview
The OmniCure R2000Plus UV Radiometer provides accurate and repeatable optical power and irradiance measurements for UV curing process control in industrial environments. Designed for handheld and tabletop use, it features a large backlit LCD, modern graphical interface, USB‑C connectivity and a rechargeable Li‑ion battery for flexible deployment.

Applications

• Process control for UV curing in bonding, coating and assembly operations
• On‑site irradiance verification at cure sites using optional Cure Ring and Cure Site sensors
• Calibration, maintenance and verification of UV sources in production and R&D

Compatibility
Compatible with OmniCure S2000 Series systems and supports optional OmniCure UV Cure Ring and Cure Site radiometer sensors to measure output at the cure site and enable precise control of curing processes.

Key features

• Wideband OmniCure detector technology for accurate power and irradiance measurements
• Proprietary optical interface to reduce beam‑profile dependence and improve measurement accuracy
• Integrated data logging with onboard storage and PC software download
• Dual USB‑C ports for PC connection and charging; RS‑232 and Mini‑DIN external sensor port
• Automatic auto‑ranging for power and irradiance to maximize displayed resolution
• Rechargeable Li‑ion battery, large backlit LCD and ergonomic design for handheld and bench use
• Supervisor mode, one‑button S‑Series calibration and automatic light guide detection

Technical specifications

• Wavelength range: 250 nm–1 µm (with suitable calibration)
• Spectral range: 300–600 nm; Calibration range: 320–500 nm
• Maximum range: Power 10 mW–12 W; Irradiance 5 mW/cm²–60 W/cm²
• Dynamic range: 83 mW–2.5 W; Resolution: 0.01 mW–0.1 W (range dependent)
• Accuracy: ±5% (max), ±0.200 W/cm²; Calibration: NIST traceable
• Connectivity: USB‑C, RS‑232, Mini‑DIN external sensor port
• Dimensions: 197 × 114 × 64 mm; Weight: 600 g
• Certifications: CE (IEC/Canadian/US standards), RoHS; Warranty: 1 year
