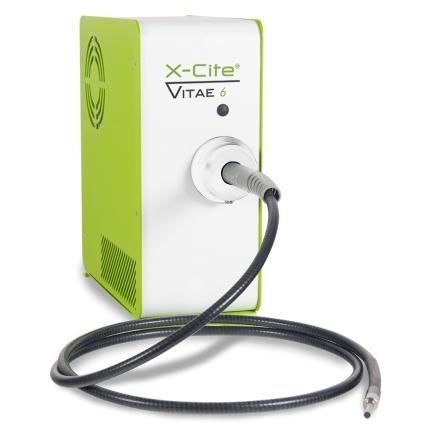

LED light source X-Cite Vitae 6™

ultravioletadjustable wavelengthvisible

Overview
The X-Cite Vitae 6 is a multi-wavelength LED illumination system designed for imaging, diagnostic and analytical instruments. Its modular LED architecture supports up to six independently controllable wavelengths across a 360–740 nm range, with UV–IR options available on request. The platform delivers high optical output with optimized thermal management and a configurable footprint for instrument integration. High-speed color switching and multiple control interfaces enable precise synchronization with acquisition systems.

Features and Benefits

• Independent wavelength control: operate each LED individually or concurrently without channel sharing or filter-change delays.
• Excitation filter holders: precise adjustment to tailor excitation spectra to application requirements.
• Light guide delivery: configurable light guide options to couple illumination into microscopes or instruments; main unit may be remotely located if space is constrained.
• Multiple control options: USB (B-type), TTL, analog control or combinations for flexible system integration.
• Compact footprint: minimized benchtop or instrument space impact.
• Optimized thermal management: preserves LED output, lifetime and stability.
• External power options: accepts 24 VDC instrument input or universal external adapter (100–240 VAC).

Specifications
Wavelength range: 360–740 nm (UV–IR options available on request)
Excitation filters: accepts standard 25 mm diameter filters with 3.5 mm frames
External power supply: universal input 100–240 VAC, 50/60 Hz (optional); 24 VDC instrument input supported
Response times: 50 μs (TTL), 1 ms (USB)
Optical stability: wavelength dependent, ≤5% at 22°C ambient
Control interfaces: ON/OFF TTL compatible (typical 800 μA), USB (B-type), analog inputs
I/O connections: DB25 to 12× BNC (6 TTL, 6 Analog); optional BNC configurations
Dimensions: 95 mm × 230 mm × 212 mm (W × H × D)
Weight: 4.5 kg

Technical details

• Model family: X-Cite Vitae 6 multi-wavelength LED illumination platform
• LED configuration: up to six LEDs with excitation filters
• High-speed color switching supported
• Thermal management optimized for LED lifetime and output stability
• Light delivery: light guide output options; main unit can be remotely located
• Optical stability: wavelength dependent, ≤5% at 22°C ambient
• I/O: DB25 to 12× BNC; USB (B-type); TTL (ON/OFF) typical 800 μA
