Tubular bulb SG304

UV

Overview

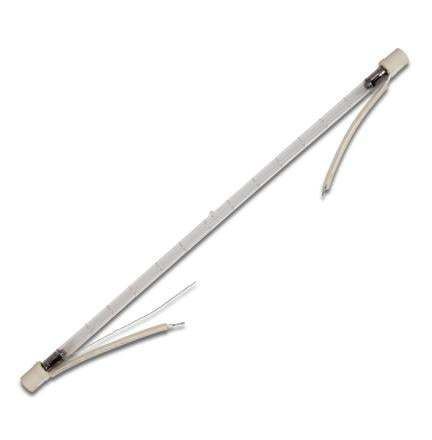

Excelitas designs and manufactures industrial flashlamps for demanding OEM and production applications. Available with quartz or borosilicate envelopes and multiple electrode technologies, these linear flashlamps cover a range of powers, voltages and frequencies to match application requirements. Excelitas provides development support, testing and integration guidance to help optimize flashlamp performance and service life.

Applications

• UV disinfection
• UV curing
• Imaging
• Traffic control
• Thermography
• Stroboscopy
• Laser pumping

Specifications (summary)
Columns: Type; Shape; Power; Anode Voltage (min/nom/max) V; e; Glass body length (mm); Overall length (mm); Envelope Ø (mm); Pin distance (mm); Ring diameter (mm); Frequency / rep rate (Hz); Life (hours); Envelope material; Trigger coil; Trigger capacitor (µF); Primary trigger voltage (V).

Models

• SG304 — linear; Power: 100 W; Anode Voltage: 400 / 600 / 660 V; e: 100; Glass body length: 130 mm; Overall length: 160 mm; Envelope Ø: 8 mm; Frequency: 5–100 Hz; Life: 250 h; Envelope material: Q1*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 250 V.
• SG305 — linear; Power: 25 W; Anode Voltage: 400 / 550 / 600 V; e: 40; Glass body length: 69 mm; Overall length: 103 mm; Envelope Ø: 8 mm; Frequency: 5–300 Hz; Life: 250 h; Envelope material: Q2*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 200 V.
• EG 9902-1 — linear; Power: 1500 W; Anode Voltage: 350 / 480 / 500 V; e: 312; Overall length: 392 mm; Envelope Ø: 10 mm; Frequency: 2–14 Hz; Life: 500 h; Envelope material: Q2*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 250 V.
• GG 9902-1 — linear; Power: 3000 W; Anode Voltage: 600 / 750 / 800 V; e: 615; Overall length: 695 mm; Envelope Ø: 10 mm; Frequency: 2–14 Hz; Life: 500 h; Envelope material: Q2*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 251 V.

Notes
* Glass types: Borosilicate B1 (standard) — automatic processing; Borosilicate B2 — withstands approx. 30% more power than B1 but requires manual processing; Quartz Q1 — UV transparent; Quartz Q2 — reduced ozone generation.

Technical characteristics

• SG304 — Shape: linear; Power: 100 W; Anode Voltage: 400 / 600 / 660 V; e: 100; Glass body length: 130 mm; Overall length: 160 mm; Envelope diameter: 8 mm; Frequency: 5–100 Hz; Life: 250 h; Envelope material: Q1*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 250 V.
• SG305 — Shape: linear; Power: 25 W; Anode Voltage: 400 / 550 / 600 V; e: 40; Glass body length: 69 mm; Overall length: 103 mm; Envelope diameter: 8 mm; Frequency: 5–300 Hz; Life: 250 h; Envelope material: Q2*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 200 V.
• EG 9902-1 — Shape: linear; Power: 1500 W; Anode Voltage: 350 / 480 / 500 V; e: 312; Overall length: 392 mm; Envelope diameter: 10 mm; Frequency: 2–14 Hz; Life: 500 h; Envelope material: Q2*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 250 V.
• GG 9902-1 — Shape: linear; Power: 3000 W; Anode Voltage: 600 / 750 / 800 V; e: 615; Overall length: 695 mm; Envelope diameter: 10 mm; Frequency: 2–14 Hz; Life: 500 h; Envelope material: Q2*; Trigger coil: ZS 1052; Trigger capacitor: 0.22 µF; Primary trigger voltage: 251 V.
