UV curing system OmniCure S1500 Pro®

high-performancesurfaceindustrial

Overview

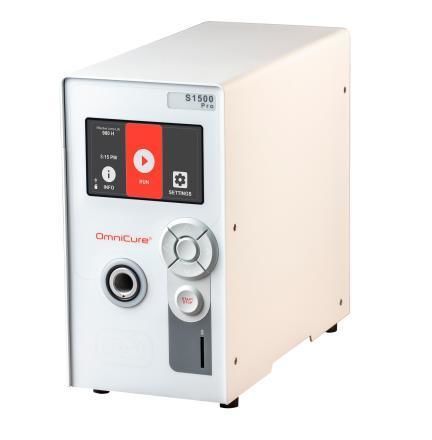

The OmniCure® S1500 Pro is a UV spot curing system designed for automated manufacturing. It provides industry-leading control, reliability, and high-intensity irradiance tailored for high-throughput UV adhesive curing and automated bonding processes used in micro-electronic and opto-electronic manufacturing.

Key Capabilities

• Proprietary Intelli-Lamp® 2.0 technology to monitor lamp operating parameters and optimize lamp life.
• StepCure® 2.0 allows customizable multi-phase cure profiles with integrated PLC controller functionality.
• 4.3” LCD touch screen interface for intuitive system operation.
• Intelli-Tap NFC keycard support for role-based process control (Admin and Supervisor keycards).
• User-interchangeable optical band pass filters (multiple standard filters and custom options) and field-replaceable lamp support.
• USB connectivity and SD card support for profile and log transfer, plus Flight Recorder event tracking.
• Supports liquid and high-power fiber light guides and both standard and surface cure lamp types.
• Cleanroom-ready design with dedicated duct attachment area.

Touch Screen User Interface
The 4.3” high-resolution LCD touch display provides easy access to system functionality and simplified navigation of settings and run screens.

StepCure 2.0 with PLC Control Capability
Built-in StepCure 2.0 software enables uploading customized multi-phase cure profiles and offers ladder-logic-based PLC controller functionality to simplify automation integration and reduce automation costs.

Intelli-Tap NFC Communication
NFC-enabled keycards support process control with distinct Admin and Supervisor roles to manage functionality and process requirements.

Field Replaceable Lamp and Optical Filter
The system can be quickly reconfigured with different optical band pass filters or lamp types. The system automatically detects installed components and adjusts operating parameters accordingly. Multiple filter choices and two lamp types are supported.

Backward / Seamless Compatibility
Designed to be drop-in compatible with the original S1500: retains the 200-Watt UV lamp, delivering outputs up to 30 W/cm2 with similar spectral output and optical power, enabling seamless upgrades without affecting existing processes.

Documentation & Software Support
Brochure and Quick Start Guide are available for the product, and firmware update packages are provided for system maintenance and updates.

NOTE
Hg-lamp contains mercury. Manage disposal in accordance with applicable disposal laws and regulations.

Technical specifications

• Electrical — Rated Input Voltage: 100-240VAC, 50/60Hz
• Electrical — Current: 3.5A Max at 120VAC; 2.0A Max at 240VAC
• Optical — Light Source: High Pressure 200-Watt Mercury Vapor Short Arc
• Optical — Lifetime: 2000 Hours (guaranteed); 3500-4000 Hours typical
• Optical — Optical Output: Up to 30 W/cm2
• Physical — Size (H x W x D): 268 x 139 x 289 mm (10.54 x 5.45 x 11.38 in)
• Physical — Size with External PLC Adapter (H x W x D): 268 x 139 x 358 mm (10.54 x 5.45 x 14.10 in)
• Physical — Weight: 5 Kg (11 Lbs)
• Operating — Rated Operating Temperature: 15°C to 40°C
• Warranty — System: 1 Year
• Warranty — Lamp: 2000 Hours
