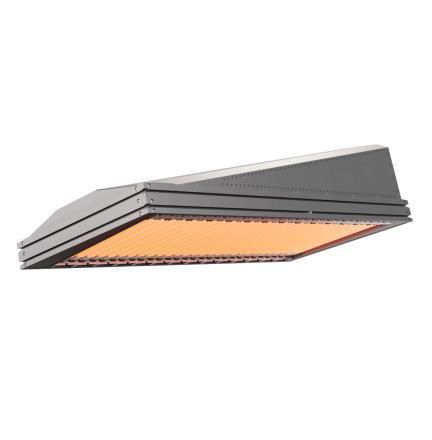

Ink drying unit Infradry® combi

Overview Infradry Combi is an infrared-hot-air drying system designed for water-based paints, coatings and printing inks. The system combines powerful infrared emitters with a suction unit positioned inside the IR field to extract fumes and volatiles precisely at the point of drying. Its modular concept enables integration in industrial printing and coating lines.

Performance The Infradry Combi delivers a high IR power density: reflector geometry concentrates radiation onto the substrate for efficient drying. Emitters can be selected across a wavelength range from NIR to CIR (carbon) to match specific drying profiles. Stepless power control and optimized air management ensure process adaptability across different inks and coatings.

Specifications

• Air suction integrated in the IR field
• Wavelength-variable twin-tube IR heater
• Efficient reflectors available in gold or QRC finishes
• Combined IR and targeted air management
• Stepless power control
• Scalable design for working widths up to 3 meters
• High thermal efficiency

Features

• Effective drying at high printing speeds
• Improved color brilliance through controlled air handling
• Modular construction for quick line integration
• Quick and simple lamp replacement
• Configurable interfaces for process control
• Designed for easy maintenance

Applications

• Drying of inks for inkjet and flexo printing
• Drying of water-based coatings in printing and converting

Technical specifications

• Integrated air suction within the IR field
• Dual-tube IR emitters with variable wavelength selection (NIR–CIR)
• Reflector options: gold or QRC
• Stepless power regulation
• Expandable module design for widths up to 3 m
