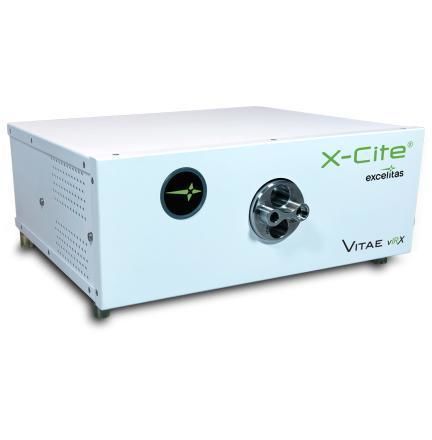

LED light source X-Cite® Vitae vIRX
NIRadjustable wavelengthvisible

LED light source - X-Cite® Vitae vIRX - Excelitas Technologies - PCO - NIR / adjustable wavelength / visible
LED light source - X-Cite® Vitae vIRX - Excelitas Technologies - PCO - NIR / adjustable wavelength / visible
Add to favorites
Compare this product

Characteristics

Illumination technology
LED
Spectrum
NIR, adjustable wavelength, visible, ultraviolet, tunable, multiple-wavelength, near-infrared, multi-color, UV, infrared, RGB
Other characteristics
calibrated, high-speed switching, high-power, benchtop, multi-channel, USB, multiple wavelength
Technical applications
for microscopy, for endoscopes
Output power

Min.: 0.18 kW
(0.24473 hp)

Max.: 0.3 kW
(0.40789 hp)

Description

Product overview
The X-Cite Vitae vIRX is a fully configurable multi-wavelength illumination platform for medical and diagnostic applications including endoscopy, surgical visualization and high-speed analytical workflows (multi-well plate/slide scanning, PCR). It supports up to 7 individually controllable channels with UV and NIR options and can replace conventional 180W/300W xenon sources while providing precise spectral control.

Details
Integrated feedback sensors deliver stable optical output and closed-loop monitoring. Individual RGB control enables accurate and repeatable CCT matching and long-term color balance, ensuring uniform illumination across large fields of view for clinical imaging and diagnostic consistency.

Features
  • Precision tuning: Match any correlated color temperature (CCT) with individual channel control
  • High optical output: Suitable replacement for traditional xenon lamp sources
  • UV and NIR capability: Support for excitation of contrast fluorophores used in surgical and diagnostic workflows
  • Optical stability: Closed-loop feedback for consistent output over time
  • Customizable: Channel count, wavelengths and optical couplings configurable to application requirements

Specifications
  • Output interface: Four-way universal turret accepting Storz, Wolf, ACMI and Olympus ferrules; customized optical couplings available
  • Wavelengths: Support for up to 7 individually controllable channels; configurable upon request
  • Minimum pulse width: 10 µs
  • Control options: Manual on/off and intensity control (1% increments per color); USB; TTL; Ethernet
  • I/O connectivity: TTL input for on/off control (2.4V–5V); Ethernet; USB; SD card slot
  • Color temperature (CCT): Fully tunable and accurate for RGB white configurations
  • Color rendering (CRI): Spectral shaping to achieve high CRI
  • Closed-loop feedback: Integrated sensors for output monitoring and stability
  • Input voltage: 24VDC; 28A
  • System dimensions: 14.25” x 6” x 11.75” (W x H x D) / ~362 x 152 x 298.5 mm
